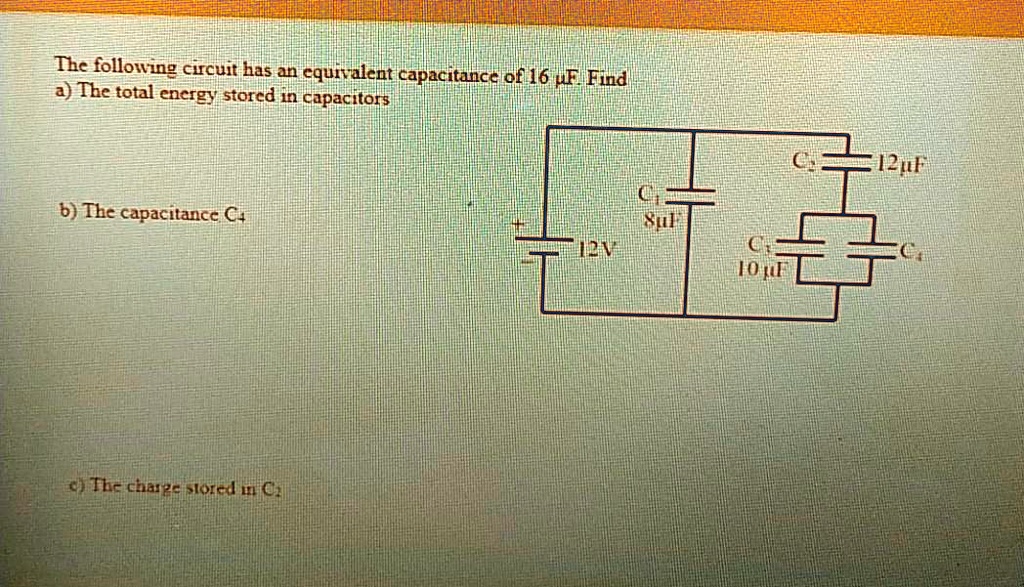

The following circuit has an equivalent capacitance of 16 µF. Find a) The total energy stored in capacitors b) The capacitance C4 c) The charge stored in C2 12V C1 8µF C2 12µF C3 10 µF C4
Added by Christopher P.
Close
Step 1
This means that all the capacitors in the circuit can be replaced by a single capacitor of 16 μF. 2) Show more…
Show all steps
Your feedback will help us improve your experience
Adi S and 59 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The following circuit has an equivalent capacitance of 16 µF. Find: a) The total energy stored in capacitors b) The capacitance C4 c) The charge stored in C2
Adi S.

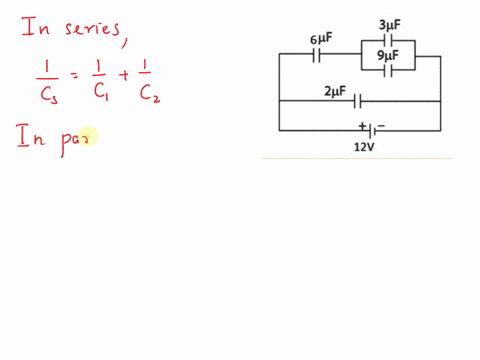

Find the total capacitance of the series-parallel combination below: 3uF 9uF 2uF 12V Select one: a. 8uF b. 10uF c. 12uF d. 6uF 6uF
