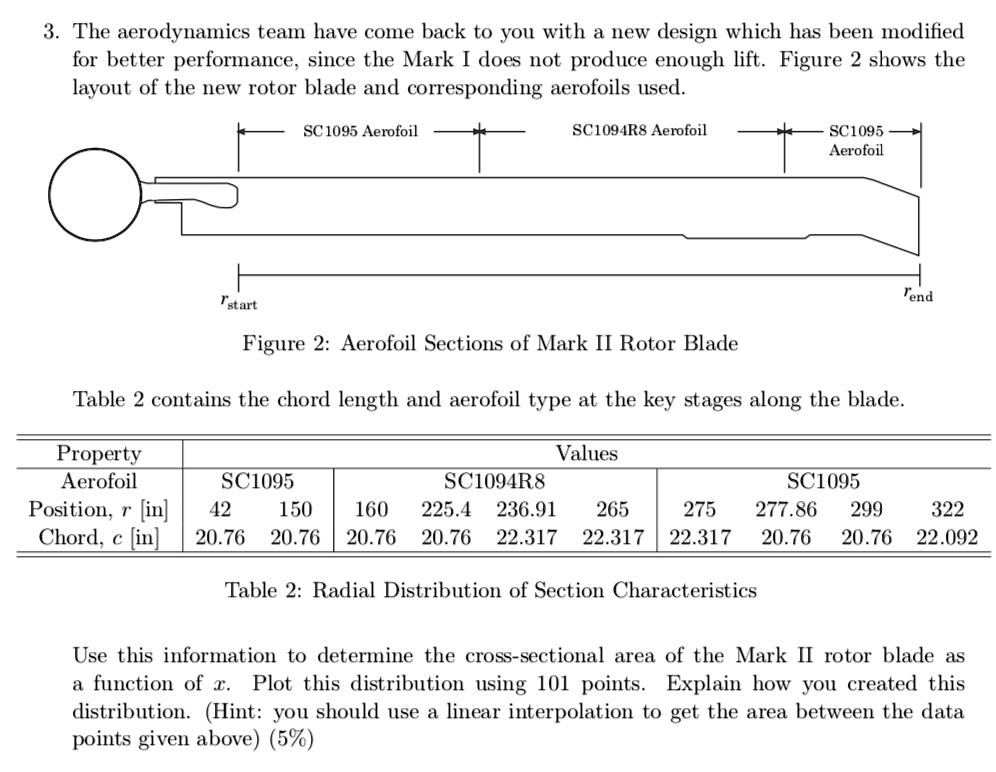

The aerodynamics team have come back to you with a new design which has been modified for better performance, since the Mark I does not produce enough lift. Figure 2 shows the layout of the new rotor blade and corresponding aerofoils used. SC1095 Aerofoil SC1094R8 Aerofoil SC1095 Aerofoil Figure 2: Aerofoil Sections of Mark II Rotor Blade Table 2 contains the chord length and aerofoil type at the key stages along the blade. Property Values Aerofoil SC1095 SC1094R8 SC1095 Position, r [in] 42 150 160 225.4 236.91 265 275 277.86 299 322 Chord, c [in] 20.76 20.76 20.76 20.76 22.317 22.317 22.317 20.76 20.76 22.092 Table 2: Radial Distribution of Section Characteristics Use this information to determine the cross-sectional area of the Mark II rotor blade as a function of x. Plot this distribution using 101 points. Explain how you created this distribution. (Hint: you should use a linear interpolation to get the area between the data points given above) (5%)
