The Bode phase plot of $G(\omega)$ of a network is depicted in Fig. 14.73. Find $G(\omega)$.

Name: The Bode phase plot of G(ω) of a network is depicted in Fig. 14.73. Find G(ω).
Uploaded: 2023-08-08T04:20:09-08:00
Duration: 2 min 18 s
Channel: Adi S
Description: The Bode phase plot of G(ω) of a network is depicted in Fig. 14.73. Find G(ω).

          The Bode phase plot of $G(\omega)$ of a network is depicted in Fig. 14.73. Find $G(\omega)$.

Added by Samuel A.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

08/08/2023

Step 1

1 rad/s and -90 degrees at w = 1 rad/s. Show more…

Show all steps

Thanks for your feedback!

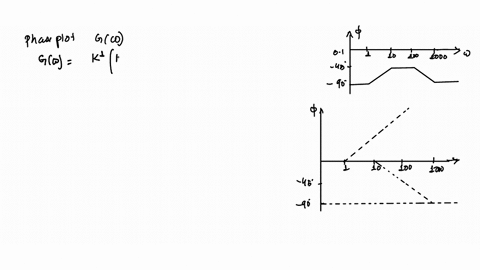

The Bode phase plot of G of a nerwork is depicted in Fig.14.73.Find G. 00 0.1 1 10 102 103 w(rad/s) -450 -90
