1. The Darcy friction factor $f_D$ for turbulent flow through pipe is given by $\frac{1}{\sqrt{f_D}} + 0.86858 \ln \left[ \frac{E/D}{3.7} + \frac{2.51}{N_{Re}\sqrt{f_D}} \right]$ Determine the friction factor for $N_{Re} = 195000$ & $E/D = 0.0090$. Use Bisection method.
Added by Lauren M.
Close
Step 1
The equation is: F(f_D) = 1/√(f_D) + 0.86858ln[(E/D)/(3.7) + (2.51)/(N_Re√(f_D))] We are given the values of N_Re = 195000 and E/D = 0.0090. Step 2: Set up the Bisection method The Bisection method is an iterative method used to find the root of a continuous Show more…
Show all steps
Your feedback will help us improve your experience
Satpal Satpal and 97 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The Moody diagram gives the Darcy friction factor, $f,$ in terms of Reynolds number and relative roughness. The Fanning friction factor for pipe flow is defined as $$f_{F}=\frac{\tau_{w}}{\frac{1}{2} \rho \nabla^{2}}$$ where $\tau_{w}$ is the wall shear stress in the pipe. Show that the relation between the Darcy and Fanning friction factors for fully developed pipe flow is given by $f=4 f_{F}$
H. Blasius correlated data on turbulent friction factor in smooth pipes. His equation $f_{\text {smooth}}=0.3164 \mathrm{Re}^{-1 / 4}$ is reasonably accurate for Reynolds numbers between 4000 and $10^{5}$. Use this information for the following scenario. Water at $20^{\circ} \mathrm{C}$ is to flow through a $3-\mathrm{cm}$ I.D. plastic pipe at the rate of $0.001 \mathrm{m}^{3} / \mathrm{s}$. Find the inc ine angle of the pipe needed to make the static pressure constant along the pipe.

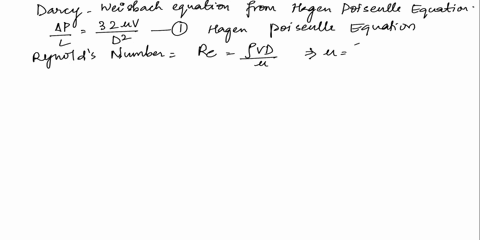

Show how the Darcy-Weisbach equation can be derived from the Hagen-Poiseuille equation through the introduction of the Reynolds number. What is the friction factor, f, equal to for flow at a laminar condition? What is it equal to in other regimes of flow?
