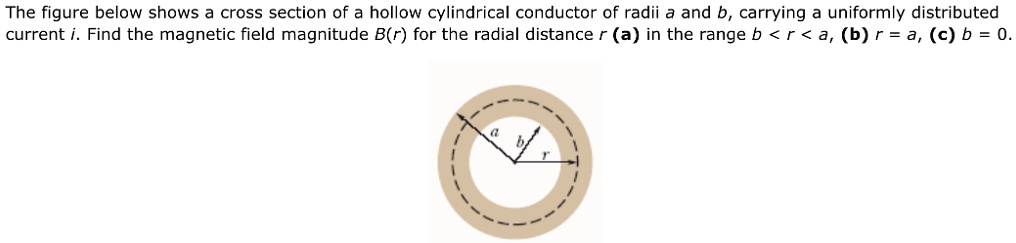

The figure below shows a cross section of a hollow cylindrical conductor of radii a and b, carrying a uniformly distributed current $i$. Find the magnetic field magnitude $B(r)$ for the radial distance $r$ (a) in the range $b < r < a$, (b) $r = a$, (c) $b = 0$.
Added by Jacob P.
Close
Step 1
(b) At r = a, the magnetic field is at its maximum value. This is because the magnetic field is directly proportional to the radial distance r. Show more…
Show all steps
Your feedback will help us improve your experience
Adriano Chikande and 61 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Figure $30-42$ shows a cross section of a long cylindrical conductor of radius $a$, carrying a uniformly distributed current $i$. Assume that $a=$ $2.0 \mathrm{~cm}$ and $i=100 \mathrm{~A}$, and plot the magnitude of the magnetic field $|\vec{B}(r)|=B(r)$ over the range $0<r<6.0 \mathrm{~cm} .$
A long, cylindrical conductor of radius $a$ has two cylindrical cavities of diameter $a$ through its entire length, as shown in cross-section in Figure $\mathrm{P} 30.75$. A current $I$ is directed out of the page and is uniform through a cross section of the conductor. Find the magnitude and direction of the magnetic field in terms of $\mu_{0}, I, r$, and $a$ (a) at point $P_{1}$ and (b) at point $P_{2}$.
Figure $29-87$ shows a cross section of a hollow cylindrical conductor of radii $a$ and $b$, carrying a uniformly distributed current $i .$ (a) Show that the magnetic field magnitude $B(r)$ for the radial distance $r$ in the range $b<r<a$ is given by (b) Show that when $r=a$, this equation gives the magnetic field magnitude $B$ at the surface of a long straight wire carrying current $i$; when $r=b$, it gives zero magnetic field; and when $b=0$, it gives the magnetic field inside a solid conductor of radius $a$ carrying current $i .$ (c) Assume that $a=2.0$ $\mathrm{cm}, b=1.8 \mathrm{~cm}$, and $i=100 \mathrm{~A}$, and then plot $B(r)$ for the range $0<r<6 \mathrm{~cm}$
