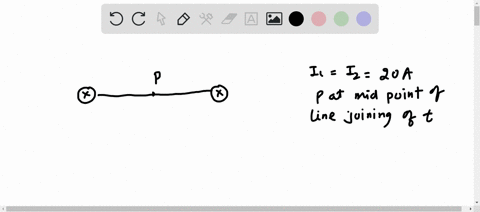

The figure shows two long, parallel current-carrying wires. The wires carry equal currents I1 = I2 = 20 A in the directions indicated and are located a distance d = 0.5 m apart. Calculate the magnitude and direction of the magnetic field at the point P that is located an equal distance d/2 from each wire. (?0 = 4? × 10^-7 T · m/A)
Added by Vicki M.
Close
Step 1
5 \, \text{m} \) - Distance from each wire to point P \( r = \frac{d}{2} = 0.25 \, \text{m} \) - Permeability of free space \( \mu_0 = 4\pi \times 10^{-7} \, \text{T}\cdot\text{m/A} \) Show more…
Show all steps
Your feedback will help us improve your experience
Narayan Hari and 85 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The figure shows two long, parallel current-carrying wires. The wires carry equal currents I1 = I2 = 20 A in the directions indicated and are located a distance d = 0.5 m apart. Calculate the magnitude and direction of the magnetic field at the point P that is located an equal distance d/2 from each wire. (μ0 = 4π × 10^-7 T · m/A)
Khoobchandra A.
The two long, parallel wires shown in the accompanying figure carry currents in the same direction. If $I_{1}=10 \mathrm{A}$ and $I_{2}=20 \mathrm{A}, \quad$ what is the magnetic field at point P?

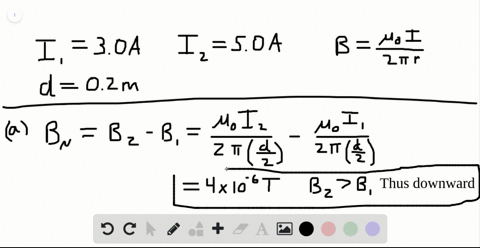

Two long, parallel wires carry currents of $I_{1}=3.00 \mathrm{A}$ and $I_{2}=5.00 \mathrm{A}$ in the direction indicated in Figure $\mathrm{P} 19.50$ . (a) Find the magnitude and direction of the magnetic field at a point midway between the wires $(d=20.0 \mathrm{cm}) .$ (b) Find the magnitude and direction of the magnetic field at point $P$ , located $d=20.0 \mathrm{cm}$ above the wire carrying the 5.00 -A current.
