The following calibration duct system for air flow: Tom hot wire anemometer (HWA) velocity measurement Air Velocity (ns) HWA Output Voltage (E) L.10U 1362 1431 2.0 1.487 1535 25 3.0 1576 1.647 1.706 5.0 65 8.0 -780 10. 1. 12. : 16. 17. 1.841 1.910 12.5 1.983 2.072 2.159 2.257 2.379 2.500 Perform polynomial curve fit to the data using Matlab's polyfit command to obtain the best curve fit for air velocity V as a function of voltage E: V(E). Plot the data points along with your curve fit. Justify the polynomial order that YOU used.
Added by Jason S.
Step 1
First, we need to use the polyfit command in Matlab to obtain the best curve fit for air velocity V as a function of voltage E. We can do this by typing the following command in the Matlab command window: coeffs = polyfit(E, ns, n) where E is the HWA output Show more…
Show all steps
Close
Your feedback will help us improve your experience
Bradley Duda and 74 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

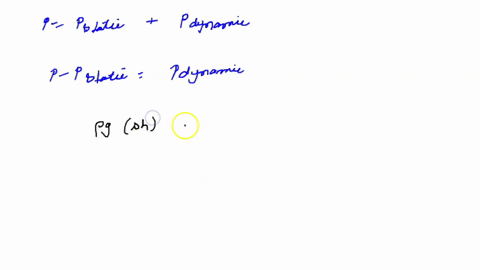

The air velocity in the duct of a heating system is to be measured by a Pitot-static probe inserted into the duct parallel to the flow. If the differential height between the water columns connected to the two outlets of the probe is 2.4 cm, determine (a) the flow velocity and (b) the pressure rise at the tip of the probe. The air temperature and pressure in the duct are 45°C and 98 kPa, respectively.
Sri K.
Air enters a rectangular duct measuring 30 cm x 40 cm with a velocity of 8.5 m/s and a temperature of 40°C. The flowing air has a thermal conductivity of 0.028 W/m-deg, kinematic viscosity of 16.95 x 10^-6 m^2/s, and from empirical correlations, the Nusselt number has been approximated to be 425. Work out the equivalent diameter of the flow passage, the flow Reynolds number, and the convective heat flow coefficient.
Ishana K.
Air is flowing in a duct as shown in Fig. P11.13. A Pitot-static tube and a thermocouple are inserted into the flow stream as shown. Calculate the air velocity and the air mass flow rate. Answers: v = 909 ft/sec, m = 0.8297, mass flow rate = 3.13 slugs/sec A = 1 ft^2 40°F p = 3 psig Po = 15 psig
Narayan H.
