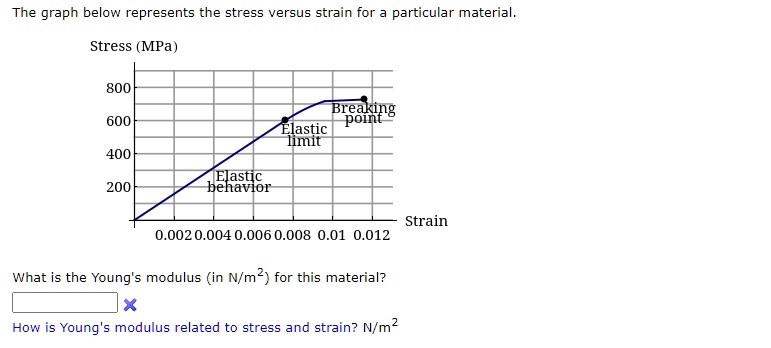

The graph below represents the stress versus strain for a particular material. Stress (MPa) 800 600 Breaking point Elastic limit 400 Elastic behavior 200 0.002 0.004 0.006 0.008 0.01 0.012 Strain What is the Young's modulus (in N/m") for this material? How is Young's modulus related to stress and strain? N/m"
Added by Melinda J.
Close
Step 1
Young's modulus (E) is defined as the ratio of stress (σ) to strain (ε) in the linear elastic region of the stress-strain curve. Mathematically, it is given by: \[ E = \frac{\sigma}{\varepsilon} \] Show more…
Show all steps
