Question

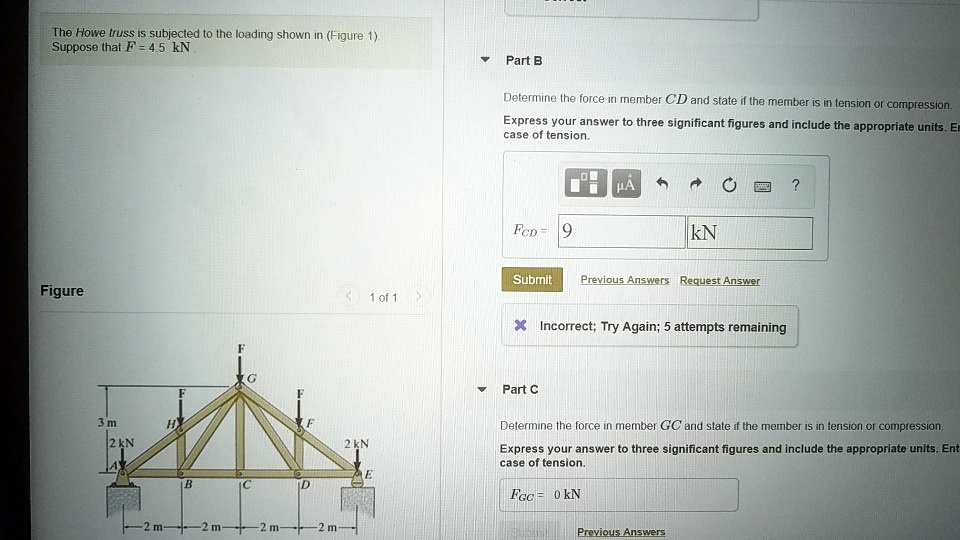

The Howe truss is subjected to the loading shown in (Figure 1). Suppose that F = 4.5 kN. Figure 3 m 2 kN A H F B G F C D F F E 2 kN 2 m 2 m 2 m 2 m Part B Determine the force in member CD and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter a positive value in case of tension. FCD = 9 kN Part C Determine the force in member GC and state if the member is in tension or compression. Express your answer to three significant figures and include the appropriate units. Enter a positive value in case of tension. FGC = 0 kN

          The Howe truss is subjected to the loading shown in (Figure 1). Suppose that F = 4.5 kN.

Figure
3 m
2 kN
A
H
F
B
G
F
C
D
F
F
E
2 kN
2 m
2 m
2 m
2 m

Part B
Determine the force in member CD and state if the member is in tension or compression.
Express your answer to three significant figures and include the appropriate units. Enter a positive value in case of tension.

FCD = 9 kN

Part C
Determine the force in member GC and state if the member is in tension or compression.
Express your answer to three significant figures and include the appropriate units. Enter a positive value in case of tension.

FGC = 0 kN

The Howe truss is subjected to the loading shown in (Figure 1). Suppose that F = 4.5 kN.

Figure
3 m
2 kN
A
H
F
B
G
F
C
D
F
F
E
2 kN
2 m
2 m
2 m
2 m

Part B
Determine the force in member CD and state if the member is in tension or compression.
Express your answer to three significant figures and include the appropriate units. Enter a positive value in case of tension.

FCD = 9 kN

Part C
Determine the force in member GC and state if the member is in tension or compression.
Express your answer to three significant figures and include the appropriate units. Enter a positive value in case of tension.

FGC = 0 kN
