Question

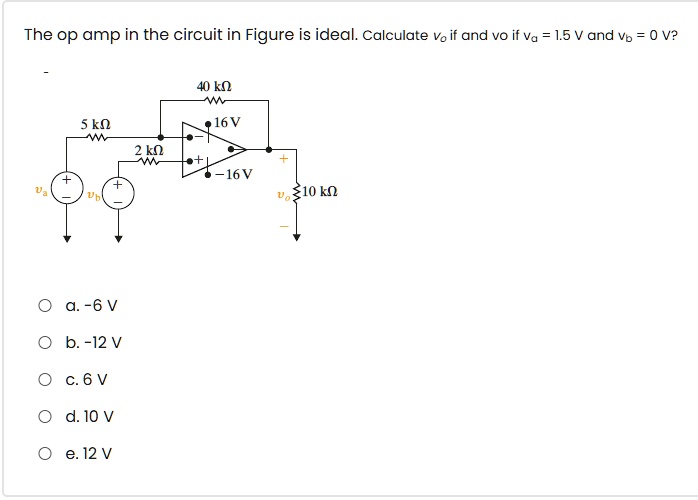

The op amp in the circuit in Figure is ideal. Calculate vo if and vo if va = 1.5 V and vb = 0 V? 40 k? 5 k? 16 V 2 k? -16 V vo 10 k? a. -6 V b. -12 V c. 6 V d. 10 V e. 12 V

          The op amp in the circuit in Figure is ideal. Calculate vo if and vo if va = 1.5 V and vb = 0 V?
40 k?
5 k?
16 V
2 k?
-16 V
vo 10 k?
a. -6 V
b. -12 V
c. 6 V
d. 10 V
e. 12 V

The op amp in the circuit in Figure is ideal. Calculate vo if and vo if va = 1.5 V and vb = 0 V?
40 k?
5 k?
16 V
2 k?
-16 V
vo 10 k?
a. -6 V
b. -12 V
c. 6 V
d. 10 V
e. 12 V

Added by Maria A.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Thanks for your feedback!

The op amp in the circuit in Figure is ideal. Calculate vo if and vo if va = 1.5 V and vb = 0 V? a. -6 V b. -12 V c. 6 V d. 10 V e. 12 V
