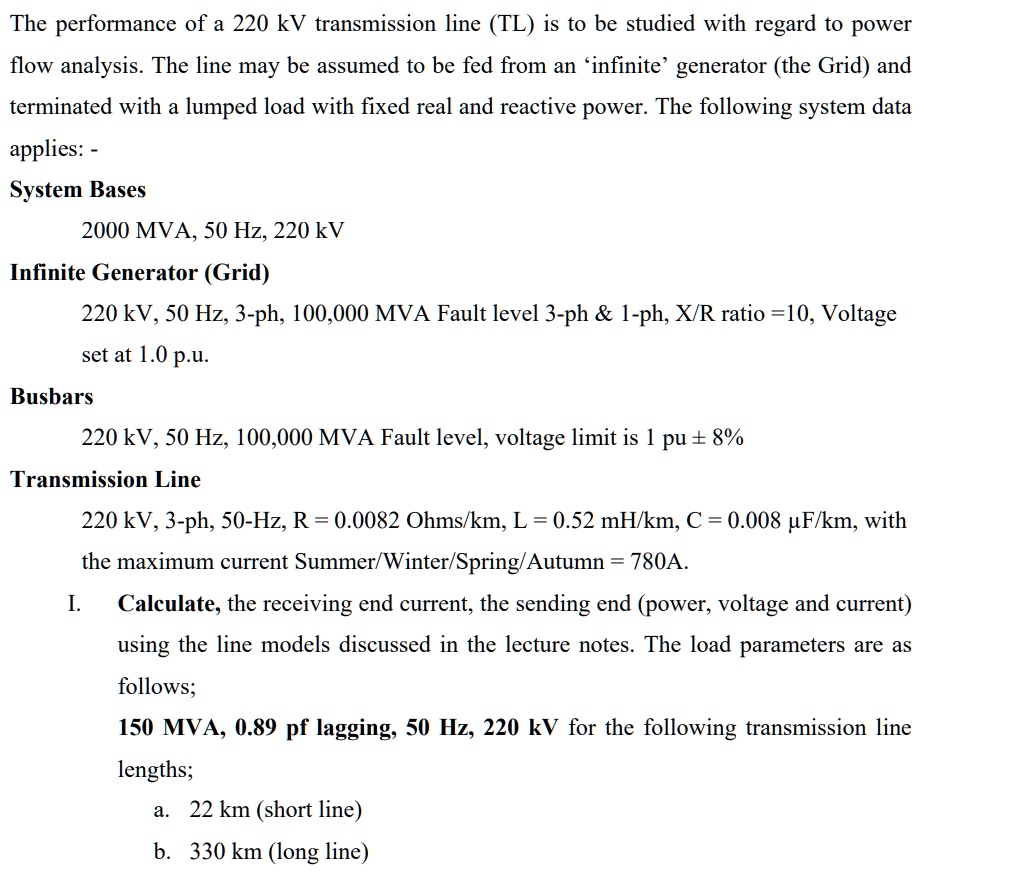

The performance of a 220 kV transmission line (TL) is to be studied with regard to power flow analysis. The line may be assumed to be fed from an 'infinite' generator (the Grid) and terminated with a lumped load with fixed real and reactive power. The following system data applies: - System Bases 2000 MVA, 50 Hz, 220 kV Infinite Generator (Grid) 220 kV, 50 Hz, 3-ph, 100,000 MVA Fault level 3-ph & 1-ph, X/R ratio =10, Voltage set at 1.0 p.u. Busbars 220 kV, 50 Hz, 100,000 MVA Fault level, voltage limit is 1 pu ± 8% Transmission Line 220 kV, 3-ph, 50-Hz, R = 0.0082 Ohms/km, L = 0.52 mH/km, C = 0.008 µF/km, with the maximum current Summer/Winter/Spring/Autumn = 780A. I. Calculate, the receiving end current, the sending end (power, voltage and current) using the line models discussed in the lecture notes. The load parameters are as follows; 150 MVA, 0.89 pf lagging, 50 Hz, 220 kV for the following transmission line lengths; a. 22 km (short line) b. 330 km (long line)
Added by Bego-A G.
Close
Step 1
0082 + j(0.52 x 10^-3) + j(0.008 x 10^-6) Z = 0.0082 + j0.52 + j0.008 x 10^-3 Z = 0.0082 + j0.520008 Show more…
Show all steps
