The pipe assembly is subjected to the force of F = 85 N. Determine the moment of this force about point B, if α = 40° and β = 25°. The position of C from A is defined by the following values: L1 = 0.40 m, L2 = -0.55 m, and L3 = 0.25 m.
Added by Taylor S.
Step 1
We can represent this vector as $\vec{r}_{C/A} = L_1\hat{i} + L_2\hat{j} + L_3\hat{k}$. Now, we can plug in the given values for $L_1$, $L_2$, and $L_3$: $\vec{r}_{C/A} = 0.40\hat{i} - 0.55\hat{j} + 0.25\hat{k}$. Show more…
Show all steps
Close
Your feedback will help us improve your experience
Sutara K and 61 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Determine the moment about point O of each force acting on the pipe assembly. Add these moments and calculate the magnitude and coordinate direction angles of the resultant moment. F1 = {30i + 20j - 30k} N F2 = {60i - 10j - 35k} N 0.8 m 1.20 m 0.4 m
Sri K.

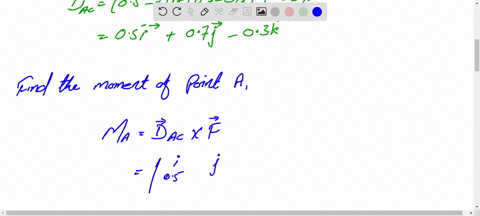

#432. The pipe assembly is subjected to the force of F {600i + 800j + 500k} N. Determine the moment of this force about point A. 4-33. The pipe assembly is subjected to the force of F {600i + 800j + 500k} N. Determine the moment of this force about point B. 0.5 m 0.4 m 0.3 m 0.3 m
Abid H.

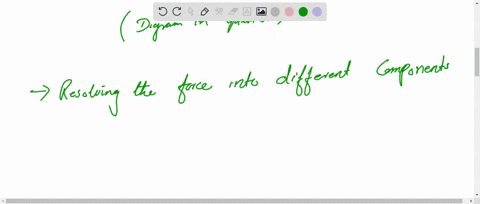

The force of F = 30 N acts on the bracket as shown. Determine the moment of the force about the a-a axis of the pipe if α = 60°, β = 60°, and γ = 45°. Also, determine the coordinate direction angles of F in order to produce the maximum moment about the a-a axis.What is this moment?
