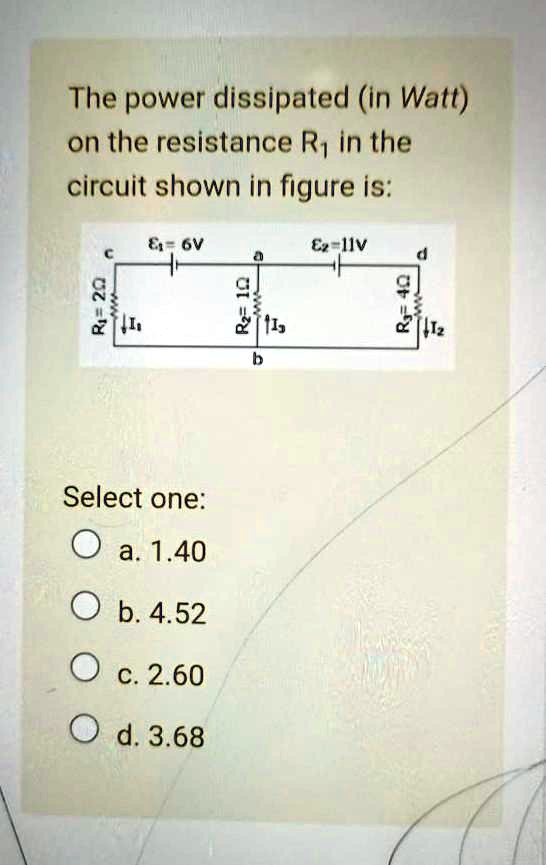

The power dissipated (in Watt) on the resistance R? in the circuit shown in figure is: Select one: a. 1.40 b. 4.52 c. 2.60 d. 3.68
Added by Jaime H.
Close
Step 1
We can use Ohm's Law to do this. Ohm's Law states that the current (I) flowing through a resistor is equal to the voltage (V) across the resistor divided by the resistance (R) of the resistor. In this case, the voltage across the resistor Ri is given as 6V. The Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 51 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Consider the circuit given in the figure. If the current crossing the resistance R1 is 2A, Calculate, a) Resistance of the R1 b) Current in 4 ohm c) Power dissipated in the R1
Adi S.

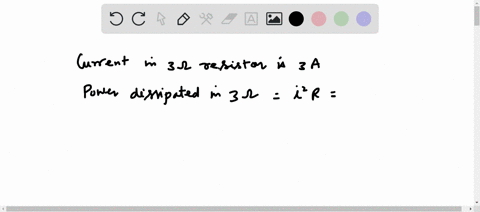

A part of the circuit is shown in Fig. $14.45$ (A) power dissipated in $3 \Omega$ resistance is $27 \mathrm{~W}$. (B) $V_{C}-V_{B}=20 \mathrm{~V}$. (C) $V_{C}-V_{D}=20 \mathrm{~V}$. (D) power dissipated in $6 \Omega$ resistance is $36 \mathrm{~W}$.
