The spreader bar BCD is used to spread the load acting on the 2,000 lb beam EFGH while it is being lifted. Determine the normal force, shear force, and moment at the midpoint C of the spreader bar. Neglect the weight of the bar. 2,000 lb 6 ft 5 ft 5 ft 5 ft 5 ft

Name: the spreader bar bcd is used to spread the load acting on the 2000 lb beam efgh while it is being lifted determine the normal force shear force and moment at the midpoint c of the spreader b 45583
Uploaded: 2024-06-29T18:09:04-08:00
Duration: 3 min 56 s
Channel: Adi S
Description: the spreader bar bcd is used to spread the load acting on the 2000 lb beam efgh while it is being lifted determine the normal force shear force and moment at the midpoint c of the spreader b 45583

          The spreader bar BCD is used to spread the load acting on the 2,000 lb beam EFGH while it is being lifted. Determine the normal force, shear force, and moment at the midpoint C of the spreader bar. Neglect the weight of the bar.
2,000 lb
6 ft
5 ft
5 ft
5 ft
5 ft

the spreader bar bcd is used to spread the load acting on the 2000 lb beam efgh while it is being lifted determine the normal force shear force and moment at the midpoint c of the spreader b 45583

Added by Crystal G.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

06/29/2024

Step 1

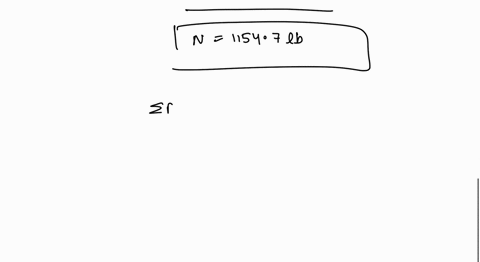

This weight is acting downwards at point A. Since the spreader bar BCD is used to spread the load, the force at A is distributed equally to points B and D. Therefore, the force at each point B and D is 1000 lb. Show more…
