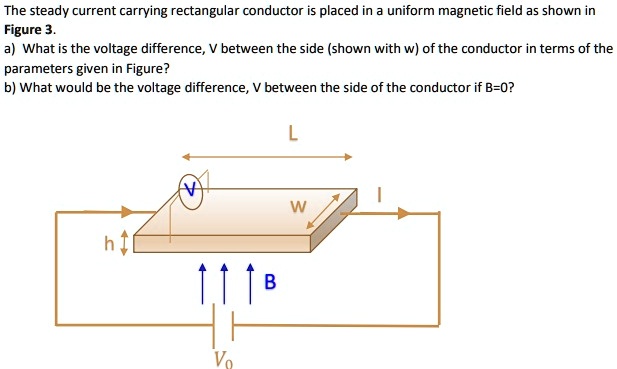

The steady current carrying rectangular conductor is placed in a uniform magnetic field as shown in Figure 3. a) What is the voltage difference, V between the side (shown with w) of the conductor in terms of the parameters given in Figure? b) What would be the voltage difference, V between the side of the conductor if B=0?
Added by Margaret C.
Close
Step 1
In this case, the length of the conductor is w, and the velocity of the charges is given by the current I and the cross-sectional area A of the conductor: v = I/A Substituting these values into the formula, we get: V = B*w*I/A b) If B=0, then there would be Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 67 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

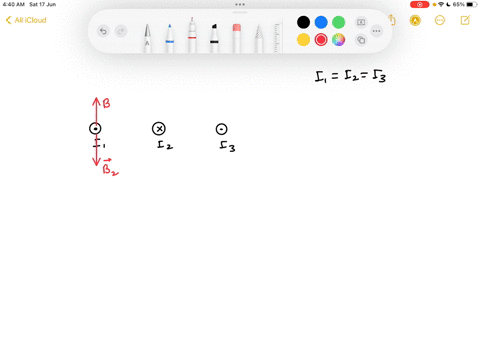

8) The figure shows three long, parallel current-carrying wires. The magnitudes of the currents are equal and their directions are indicated in the figure. Which of the arrows drawn near the wire carrying current I1 correctly indicates the direction of the magnetic force acting on that wire? A) A B) B C) C D) D E) The magnetic force on current 1 is equal to zero.
Prabhu R.

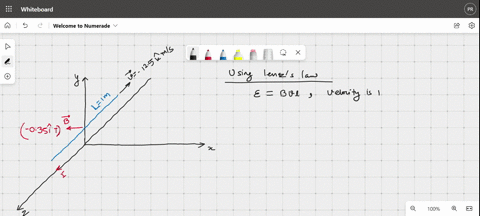

The figure shows a long, straight wire through which a current I circulates, which generates a magnetic field B ⃗ =-0.35i ̂ T. The conductor of length L=1 m moves parallel to the wire with a speed v ⃗ =-12.5k ̂ m/s constant as shown in the figure. Determine the induced emf at the ends of the conductor.
