The switch in Figure 2 has been in Position A for a long time. At t=0, the switch moves to Position B. 1. Determine v(t) of the capacitor when t > 0 (8 points) 2. Calculate the value of v(t) when t = 2 s and t = 5 s, respectively. (4 points) 5 k? A B 6 k? t = 0 15 V 1 k? v 3 mF 20 V 3 k? 3 k? Figure 2: Circuit diagram for Problem 19

          The switch in Figure 2 has been in Position A for a long time. At t=0, the switch moves to Position B.

1. Determine v(t) of the capacitor when t > 0 (8 points)

2. Calculate the value of v(t) when t = 2 s and t = 5 s, respectively. (4 points)

5 k?
A B 6 k?
t = 0
15 V
1 k?
v
3 mF
20 V
3 k? 3 k?

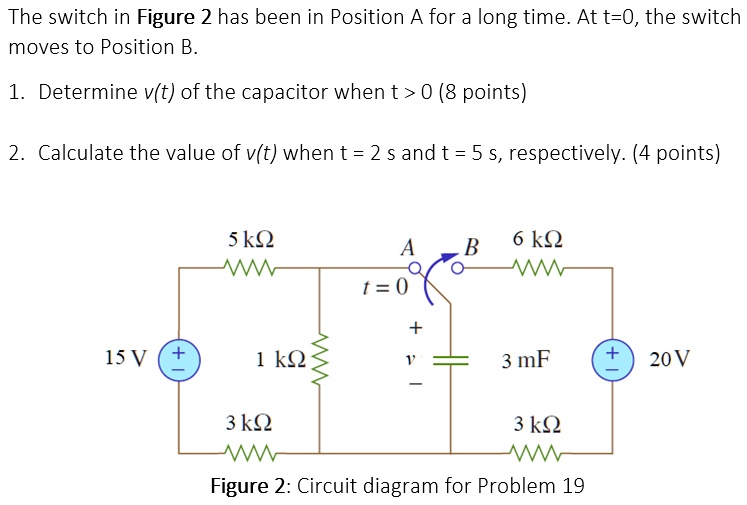

Figure 2: Circuit diagram for Problem 19

The switch in Figure 2 has been in Position A for a long time. At t=0, the switch moves to Position B.

1. Determine v(t) of the capacitor when t > 0 (8 points)

2. Calculate the value of v(t) when t = 2 s and t = 5 s, respectively. (4 points)

5 k?
A B 6 k?
t = 0
15 V
1 k?
v
3 mF
20 V
3 k? 3 k?
Figure 2: Circuit diagram for Problem 19

Added by James W.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

11/21/2023

Step 1

Since the switch has been in Position A for a long time, we can assume that the capacitor is fully charged to the voltage across it, which is 15V. Show more…
