The thermal contact conductance at the aluminum/copper interface is W/m2·°C.
Added by Anna E.
Close
Step 1
The given information is that the thermal contact conductance at the aluminum/copper interface is W/m2·°C. Show more…
Show all steps
Your feedback will help us improve your experience
Shaiju T and 55 other Chemistry 101 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
The thermal contact conductance at the interface of two 1-cm-thick aluminum plates is measured to be 11,000 W/m^2.K. Determine the thickness of the aluminum plate whose thermal resistance is equal to the thermal resistance of the interface between the plates (Fig: 3-17).
Shaiju T.
An aluminum plate of 25 mm thickness (k = 235 W/m·K) is attached to a copper plate with a thickness of 10 mm. The copper plate is heated electrically to dissipate a uniform heat flux of 5300 W/m^2. The upper surface of the aluminum plate is exposed to convection heat transfer in a condition where the convection heat transfer coefficient is 67 W/m^2·K and the surrounding room temperature is 20°C. The other surfaces of the two attached plates are insulated, allowing heat to only dissipate through the upper surface of the aluminum plate. If the surface of the copper plate that is attached to the aluminum plate has a temperature of 100°C, determine the thermal contact conductance of the aluminum-copper interface.
Prem B.

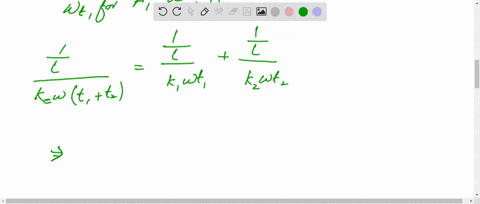

Heat is to be conducted along a circuit board that has a copper layer on one side. The circuit board is 15 cm long and 15 cm wide, and the thicknesses of the copper and epoxy layers are 0.1 mm and 1.2 mm, respectively. Disregarding heat transfer from side surfaces, determine the percentages of heat conduction along the copper (k = 386 W/m·K) and epoxy (k = 0.26 W/m·K) layers. Also determine the effective thermal conductivity of the board.
Abid H.
