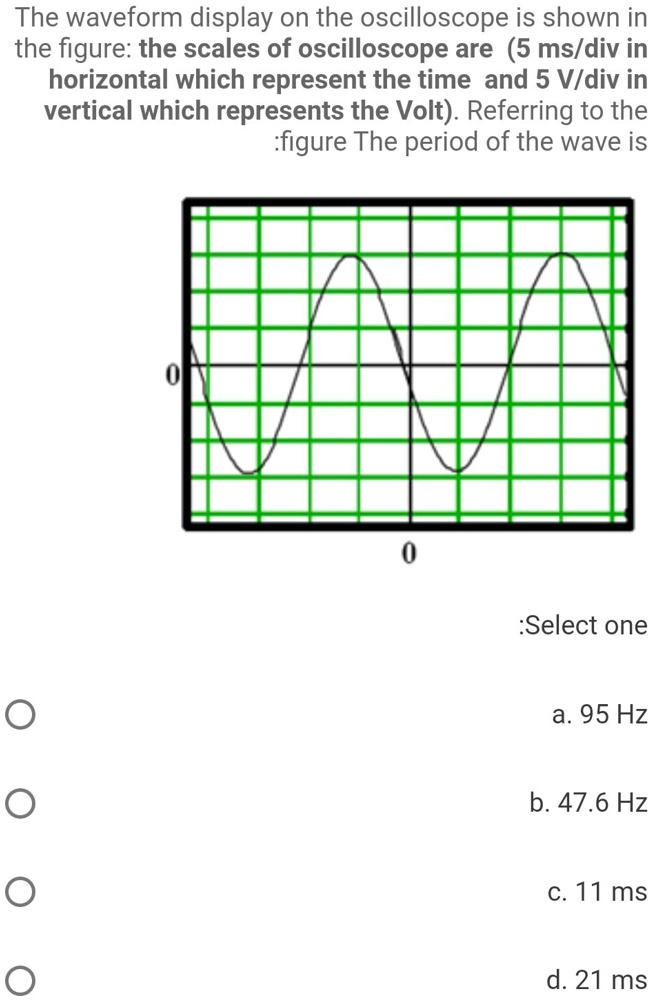

The waveform display on the oscilloscope is shown in the figure: the scales of oscilloscope are (5 ms/div in horizontal which represent the time and 5 V/div in vertical which represents the Volt). Referring to the figure: The period of the wave is 0 0 Select one: a. 95 Hz b. 47.6 Hz c. 11 ms d. 21 ms

          The waveform display on the oscilloscope is shown in the figure: the scales of oscilloscope are (5 ms/div in horizontal which represent the time and 5 V/div in vertical which represents the Volt). Referring to the figure: The period of the wave is
0
0
Select one:
a. 95 Hz
b. 47.6 Hz
c. 11 ms
d. 21 ms

The waveform display on the oscilloscope is shown in the figure: the scales of oscilloscope are (5 ms/div in horizontal which represent the time and 5 V/div in vertical which represents the Volt). Referring to the figure: The period of the wave is
0
0
Select one:
a. 95 Hz
b. 47.6 Hz
c. 11 ms
d. 21 ms

Added by Lisa G.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

06/24/2023

Step 1

In this case, the waveform repeats after approximately 4.25 divisions. Show more…

Show all steps

Thanks for your feedback!

The waveform display on the oscilloscope is shown in the figure: the scales of the oscilloscope are (5 ms/div in horizontal which represents the time and 5 V/div in vertical which represents the Volt). Referring to the figure, the period of the wave is
