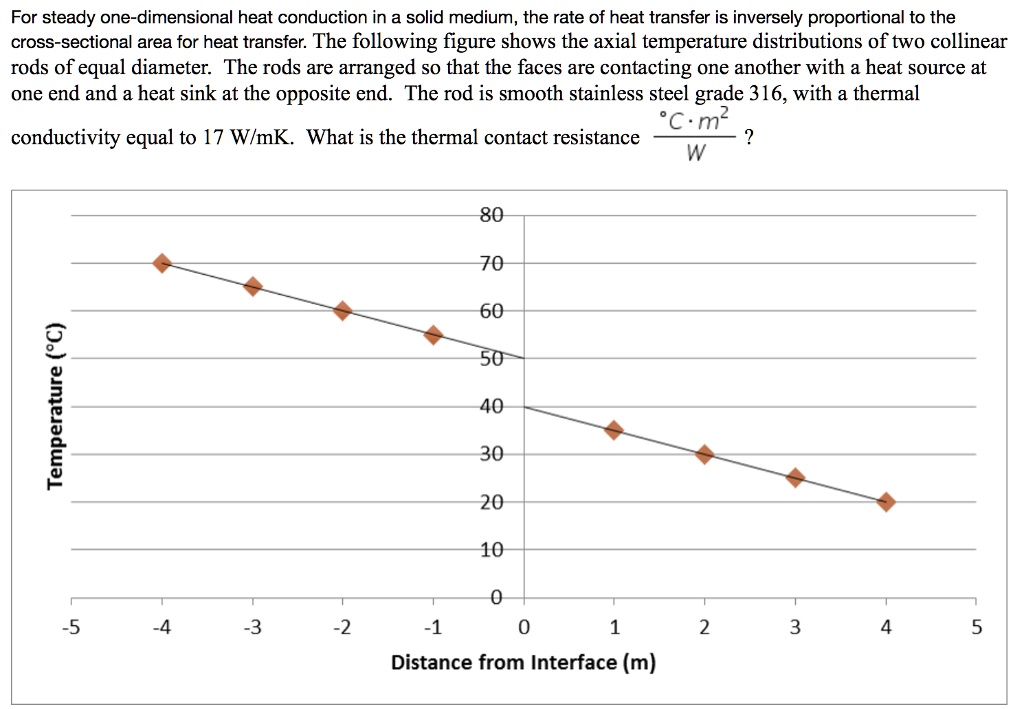

For steady one-dimensional heat conduction in a solid medium, the rate of heat transfer is inversely proportional to the cross-sectional area for heat transfer. The following figure shows the axial temperature distributions of two collinear rods of equal diameter. The rods are arranged so that the faces are contacting one another with a heat source at one end and a heat sink at the opposite end. The rod is smooth stainless steel grade 316, with a thermal conductivity equal to 17 W/mK. What is the thermal contact resistance $frac{degree C cdot m^2}{W}$?
Added by Krista T.
Close
Step 1
Thermal contact resistance is the resistance to heat flow between two surfaces in contact with each other. It is caused by imperfections in the surfaces and the presence of air or other insulating materials between them. In this case, we have two collinear rods Show more…
Show all steps
Your feedback will help us improve your experience
Karan Soni and 56 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

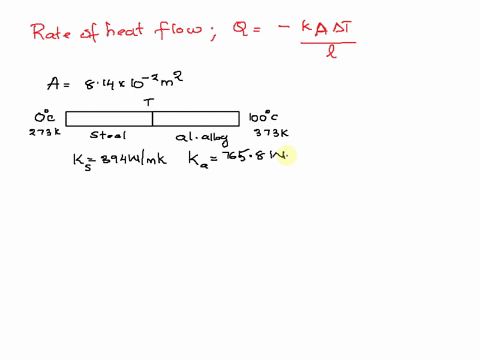

A large, thermally insulated container of ice at 0°C is connected to a large, thermally insulated container of steam at 100°C via an insulated conducting rod with uniform cross sectional area of 8.14 x 10^-2 m^2. The conducting rod is made of two separate materials. The side of the rod that is connected to the ice is 0.592 m long and comprised of a steel alloy with thermal conductivity of 394 W/mK. The side of the rod that is connected to the steam is 0.399 m long and comprised of an aluminum alloy with thermal conductivity of 765.8 W/mK. Given that the rate of heat transfer must be uniform along the rod, what is the temperature at the point where the two materials of the rod are fused together? What is the rate of heat transfer of the rod?
Madhur L.
A heater supplies 1 W power to one end of a cylindrical rod of Al with diameter 4mm and length 20 cm. The other end is held at room temperature (20 C). Al: Density = 2700, Specific Heat (c) = 900, Thermal Conductivity (k) = 235 Cu: Density = 8900, Specific Heat (c) = 382, Thermal Conductivity (k) = 401 A.) Find the temperature of the hot end. B.) Find the temperature of the hot end if the rod is copper C.) Assume that the aluminum and copper rods (each with length 20cm, diameter 4mm) are connected together with a joint of perfect thermal conductance. One end of the Cu is held at 0 degrees C and one of the Al is held at 50 degrees C. Find the heat current through the rod AND the temperature of the joint (Tj).
Adi S.
A large, thermally insulated container of ice at 0°C is connected to a large, thermally insulated container of steam at 100°C via an insulated conducting rod with a uniform cross-sectional area of 8.14 × 10⁻² m². The conducting rod is made of two separate materials. The side of the rod that is connected to the ice is 0.576 m long and comprised of a steel alloy with thermal conductivity 393.2 W/mK. The side of the rod that is connected to the steam is 0.473 m long and comprised of an aluminum alloy with thermal conductivity of 784.6 W/mK. Given that the rate of heat transfer must be uniform along the rod, what is the temperature at the point where the two materials of the rod are fused together? What is the rate of heat transfer of the rod?
