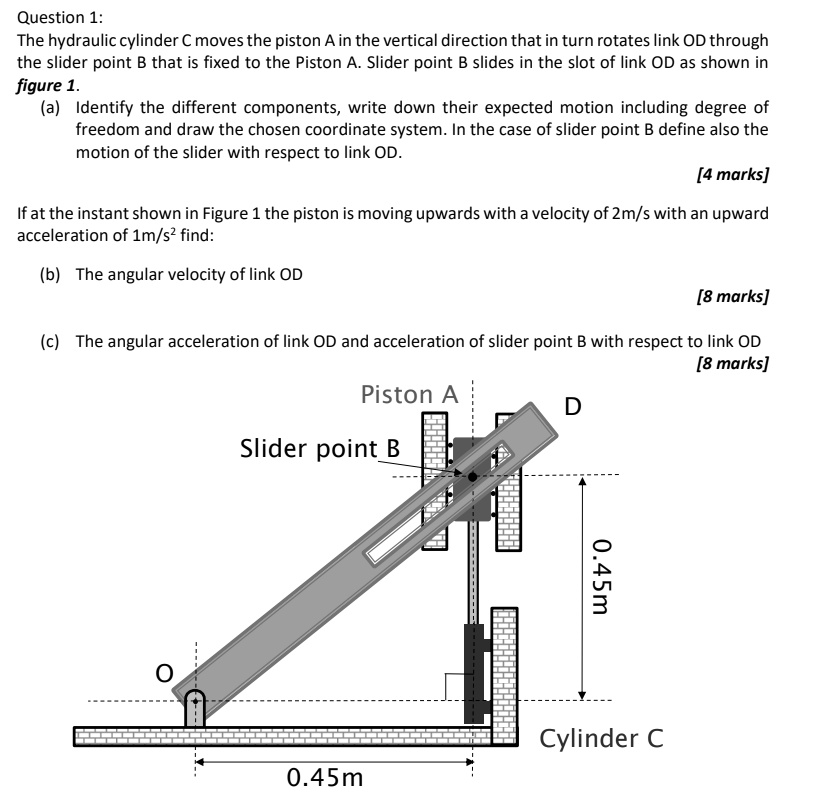

Question 1: The hydraulic cylinder C moves the piston A in the vertical direction that in turn rotates link OD through the slider point B that is fixed to the Piston A. Slider point B slides in the slot of link OD as shown in figure 1. (a) Identify the different components, write down their expected motion including degree of freedom and draw the chosen coordinate system. In the case of slider point B define also the motion of the slider with respect to link OD. [4 marks] If at the instant shown in Figure 1 the piston is moving upwards with a velocity of 2m/s with an upward acceleration of 1m/s² find: (b) The angular velocity of link OD [8 marks] (c) The angular acceleration of link OD and acceleration of slider point B with respect to link OD [8 marks] Piston A Slider point B D 0.45m Cylinder C 0.45m
Added by Pamela M.
Close
Step 1
- Hydraulic cylinder C moves piston A vertically. - Piston A is connected to slider point B. - Slider point B slides in the slot of link OD, causing it to rotate. Degrees of freedom: - Piston A moves vertically (1 degree of freedom). - Slider point B slides along Show more…
Show all steps
Your feedback will help us improve your experience
Sri K and 66 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Sri K.
Problem 1 The off-set crank slider mechanism shown in figure 1 is made up by a crank AB rotating in the counter clockwise direction with a speed of n_AB = 200 rpm, a connecting rod BD with mass m_BD = 12 kg and a massless slider D. The dimensions are given by l = 0.8 m, r = 0.2 m and b = 0.6 m. The connecting rod can be considered a long and slender rod. Consider the position where the crank angle ̘ = 60 deg. Kinematics: a) Applying the principle of relative motion at velocity level, determine the angular velocity ω_AB of the connecting rod BD b) Applying the principle of relative motion at acceleration level, determine the angular acceleration α_AB of the connecting rod BD c) Determine the linear acceleration of the center of gravity of the connecting rod, (a_G)_BD Kinetics: d) Draw a free-body diagram and a kinetic diagram of the connecting rod e) Determine the magnitude of the reaction force acting on the slider D. f) Determine the forces acting on the connecting rod in hinge B.

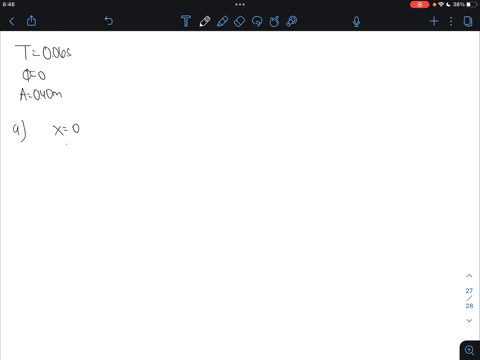

The period of the simple harmonic oscillation motion of a piston is T = 0.06 s and its φ = 0. The piston moves horizontally and turns a locomotive wheel at a constant angular speed. The radius of the wheel is A = 0.40 m and the distance between the piston where it pushes the wheel is so great that the angle with the horizontal is small and the movement from top to bottom is not important. The position of the end of the piston at t = 10 s.ANSWER: _________ m The speed of the piston at t = 10 s. ANSWER:_______ m/s The maximum value of the acceleration of the piston. ANSWER:________m/s2 The angular speed of the wheel. ANSWER:______rad/s
