three resistors are connected in a combination circuit with a 24 volt power supply ru40 rz 40 9

Name: three resistors are connected in a combination circuit with a 24 volt power supply ru40 rz 40 9 rs 80 q 24 v 0 rz ryt h a iz i3 a determine the equivalent resistance the total circuit curren 67983
Uploaded: 2023-03-27T12:31:16-08:00
Duration: 2 min 10 s
Channel: Ivan Kochetkov
Description: three resistors are connected in a combination circuit with a 24 volt power supply ru40 rz 40 9 rs 80 q 24 v 0 rz ryt h a iz i3 a determine the equivalent resistance the total circuit curren 67983

Question

Nishant Kumar · Accepted Answer

First, we need to find the equivalent resistance (Req) of the circuit. Since Ru and Rz are conne

Question

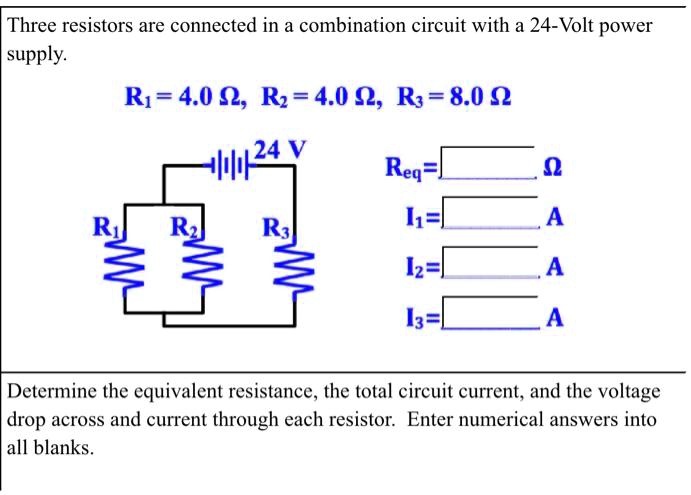

Three resistors are connected in a combination circuit with a 24-Volt power supply: R1 = 4.0 Ω, R2 = 4.0 Ω, R3 = 8.0 Ω. Determine the equivalent resistance, the total circuit current, and the voltage drop across and current through each resistor. Enter numerical answers into all blanks. Req =
