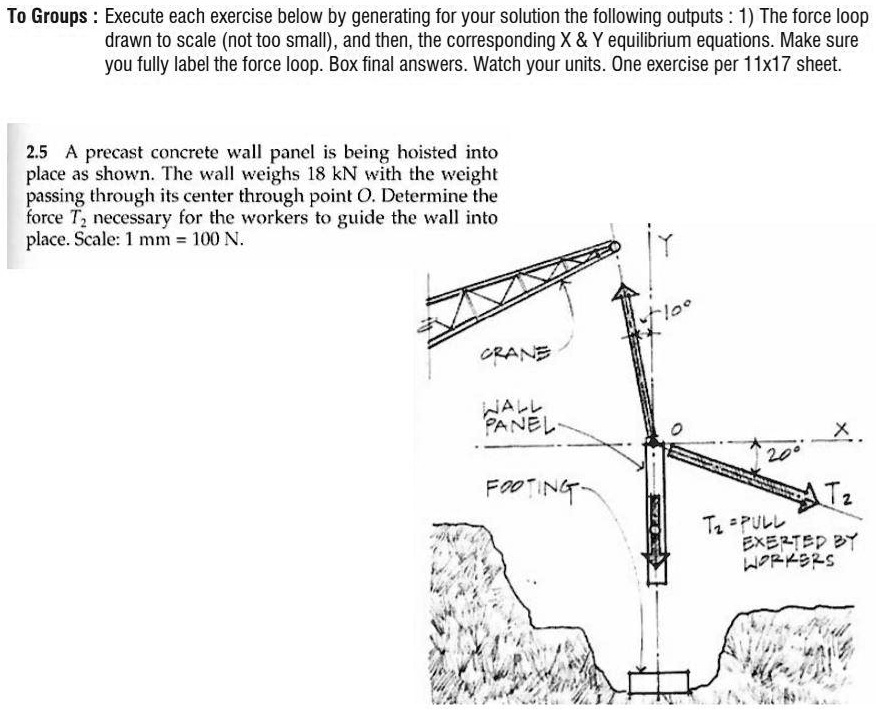

To Groups: Execute each exercise below by generating for your solution the following outputs: 1) The force loop drawn to scale (not too small), and then, the corresponding X & Y equilibrium equations. Make sure you fully label the force loop. Box final answers. Watch your units. One exercise per 11x17 sheet.
2.5 A precast concrete wall panel is being hoisted into place as shown. The wall weighs 18 kN with the weight passing through its center through point O. Determine the force T2 necessary for the workers to guide the wall into place. Scale: 1 mm = 100 N.
