          True or False
1.  The charging time of a capacitor is the same as the
discharging time. True or False
2. The charging and discharging of a capacitor has an exponential
behavior. True or false
3.  For a series configuration, the current is equal
throughout the circuit. True or false
4. For a parallel configuration, the total voltage is equal to the
Source voltage. True or false
5. The formula for Req (series) with 2 resistors R1 and R2
is:
Req = R1-R2. True or False
6. Req (parallel) for a with 2 resistors R1 and R2 is: Req =
(R1R2)/(R1+R2).  True or False

Added by David S.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Adi S

08/27/2022

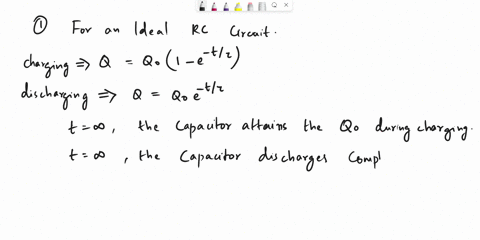

Step 1

- True ** Show more…
