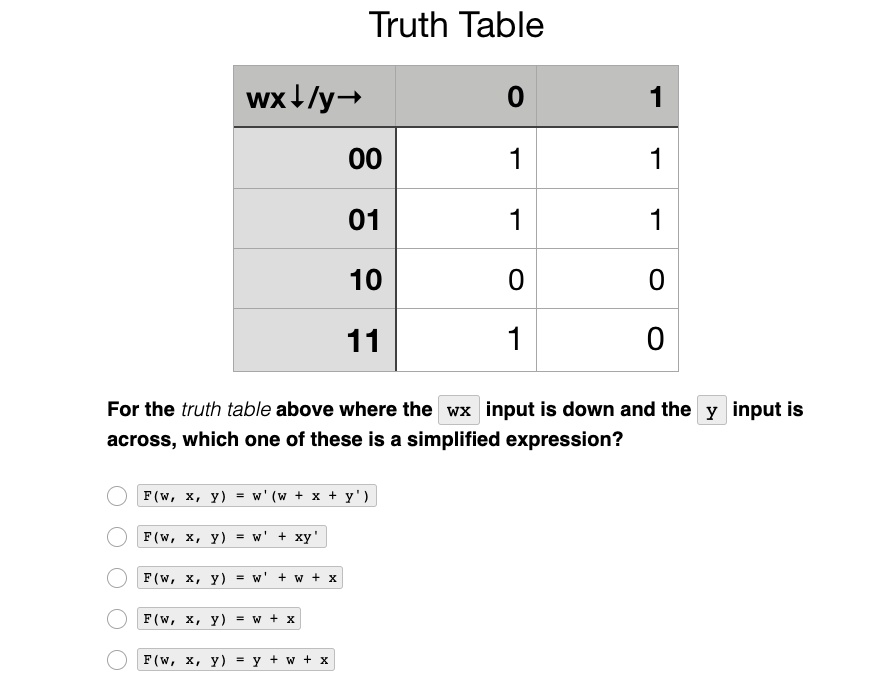

Truth Table wx?/y? 0 1 00 1 1 01 1 1 10 0 0 11 1 0 For the truth table above where the wx input is down and the y input is across, which one of these is a simplified expression? F(w, x, y) = w'(w + x + y') F(w, x, y) = w' + xy' F(w, x, y) = w' + w + x F(w, x, y) = w + x F(w, x, y) = y + w + x
