Question

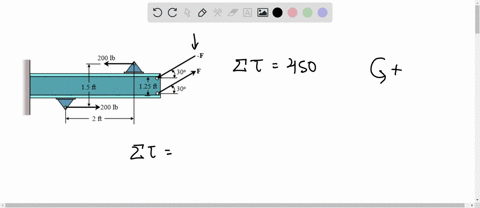

Two couples act on the beam as shown. Determine the magnitude of " \( F \) " so that the resulting torque moment is \( 300 \mathrm{lb} \).ft counterclockwise. a. 250.54 b. \( 317.4 \mathrm{Lb} \) c. \( 83.33 \mathrm{Lb} \) d. None of the above e. \( 166.67 \mathrm{Lb} \)

Name: two couples act on the beam as shown determine the magnitude of f so that the resulting torque moment is 300 mathrmlb ft counterclockwise a 25054 b 3174 mathrmlb c 8333 mathrmlb d none of the above 2
Uploaded: 2024-04-02T10:25:10-08:00
Duration: 2 min 12 s
Channel: Hubert Agamasu
Description: two couples act on the beam as shown determine the magnitude of f so that the resulting torque moment is 300 mathrmlb ft counterclockwise a 25054 b 3174 mathrmlb c 8333 mathrmlb d none of the above 2

          Two couples act on the beam as shown. Determine the magnitude of " \( F \) " so that the resulting torque moment is \( 300 \mathrm{lb} \).ft counterclockwise.
a. 250.54
b. \( 317.4 \mathrm{Lb} \)
c. \( 83.33 \mathrm{Lb} \)
d. None of the above
e. \( 166.67 \mathrm{Lb} \)

Added by Gnn

Engineering Mechanics: Statics and Dynamics

R. C. Hibbeler 14th Edition

Chapter 4

Instant Answer

Solved by Expert Hubert Agamasu

04/02/2024

Step 1

We need to find the magnitude of force \( F \) such that the total torque (moment) produced by the two couples on the beam is \( 300 \, \mathrm{lb.ft} \) in the counterclockwise direction. Show more…
