Two cover plates, each 7.5 mm thick, are welded to a W460 ×...

Two cover plates, each 7.5 mm thick, are welded to a W460 × 74 beam as shown. Knowing that $l$ = 5 m and $b$ = 200 mm, determine the maximum normal stress on a transverse section (a) through the center of the beam, (b) just to the left of D.

Labs

Want to see this concept in action?

NEW

Explore this concept interactively to see how it behaves as you change inputs.

View Labs

Transcript

00:01 Hello students, let's consider the figure and calculate the moments of area.

00:05 Therefore, we can write 5a plus 4a into t plus y bar is equal to 5at into 3a by 2.

00:18 Therefore, y bar is equal to 5a by 6.

00:23 Now to calculate the moment of area about the x -axis i .e.

00:29 I -axis will be equal to 4at into 5a divided by 6 the whole square plus 5a the whole cube into t into 3 by 5 the whole square divided by 12 plus 5at into 2a divided by 3 the whole square.

00:53 Therefore, we will get i -axis will be equal to 165 divided by 12 into a cube into t.

01:04 Secondly, we can find out what is iyy.

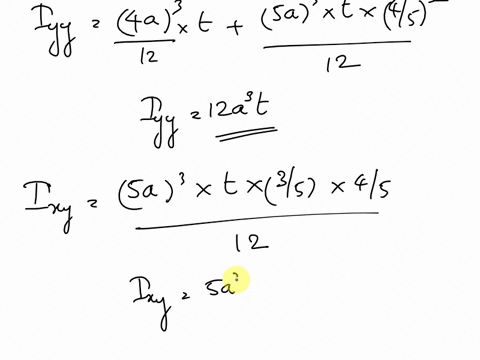

01:09 It is 4a the whole cube divided by 12 into t plus 5a the whole cube into t into 4 by 5 the whole cube sorry whole square divided by 12.

01:29 We will get iyy will be equal to 12 into a cube into t.

01:37 Thirdly, let's find out ixy and it is equal to 5a the whole cube into t into 3 by 5 into 4 by 5 divided by 12.

01:57 Hence, ixy is 5a cube t.

02:03 Now let's write the equation for maximum bending moment i .e.

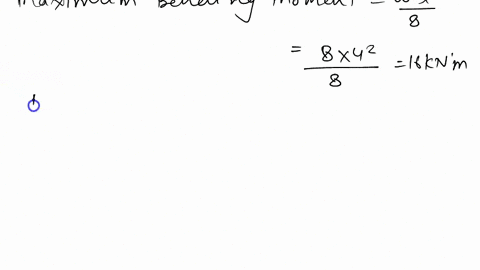

02:09 My maximum is equal to omega into t square divided by 8.

02:17 Here, mx is equal to 0.

02:20 Let's consider the equation for direct stress i .e.

02:24 M by i is equal to sigma x divided by y...

Question

Two cover plates, each 7.5 mm thick, are welded to a W460 × 74 beam as shown. Knowing that $l$ = 5 m and $b$ = 200 mm, determine the maximum normal stress on a transverse section (a) through the center of the beam, (b) just to the left of D.
