Question

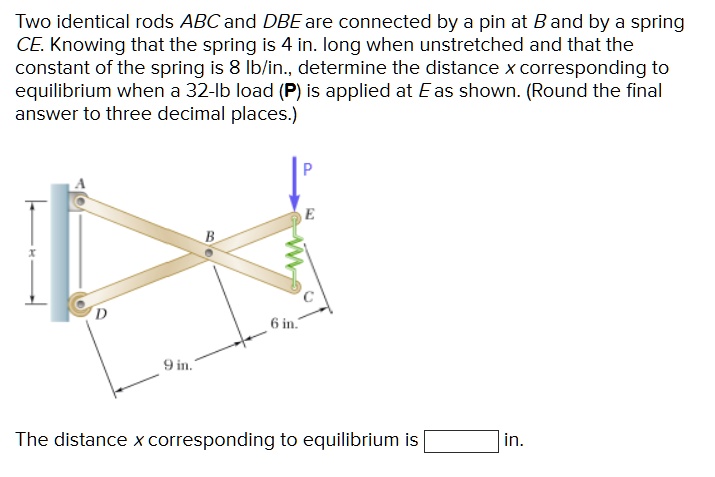

Two identical rods $ABC$ and $DBE$ are connected by a pin at $B$ and by a spring $CE$. Knowing that the spring is 4 in. long when unstretched and that the constant of the spring is 8 lb/in., determine the distance $x$ corresponding to equilibrium when a 32-lb load ($P$) is applied at $E$ as shown. (Round the final answer to three decimal places.) $A$ $P$ $E$ $B$ $C$ $D$ 6 in. 9 in. The distance $x$ corresponding to equilibrium is in.

Name: two identical rods abc and dbe are connected by a pin at b and by a spring ce knowing that the spring is 4 in long when unstretched and that the constant of the spring is 8 lbin determine th 32716
Uploaded: 2020-06-30T18:30:33-08:00
Duration: 11 min 4 s
Channel: Donald Albin
Description: two identical rods abc and dbe are connected by a pin at b and by a spring ce knowing that the spring is 4 in long when unstretched and that the constant of the spring is 8 lbin determine th 32716

          Two identical rods $ABC$ and $DBE$ are connected by a pin at $B$ and by a spring $CE$. Knowing that the spring is 4 in. long when unstretched and that the constant of the spring is 8 lb/in., determine the distance $x$ corresponding to equilibrium when a 32-lb load ($P$) is applied at $E$ as shown. (Round the final answer to three decimal places.)
$A$
$P$
$E$
$B$
$C$
$D$
6 in.
9 in.
The distance $x$ corresponding to equilibrium is in.

two identical rods abc and dbe are connected by a pin at b and by a spring ce knowing that the spring is 4 in long when unstretched and that the constant of the spring is 8 lbin determine th 32716

Added by Rhonda C.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Donald Albin

06/30/2020

Step 1

From the diagram, the horizontal distance from the pivot $B$ to $C$ (or $E$) is 6 in., and the horizontal distance from the pivot $B$ to $A$ (or $D$) is 9 in. This implies that the total length of each rod is $9 + 6 = 15$ in. - Unstretched length of spring $L_0 = Show more…

Show all steps
