Two steel plates are fastened together using four bolts. The bolts each have a shear modulus of 80.0 GPa and a shear strength of 605 MPa. The radius of each bolt is 0.900 cm. Normally, the bolts clamp the two plates together and the frictional forces between the plates keep them from sliding. If the bolts are loose, then the frictional forces are small and the bolts themselves would be subject to a large shear stress. What is the maximum shearing force F on the plates that the four bolts can withstand? N
Added by Cheryl B.
Step 1
900 \, cm = 0.009 \, m \) Area of one bolt, \( A = \pi r^2 = \pi (0.009)^2 = 2.54 \times 10^{-4} \, m^2 \) Show more…
Show all steps
Your feedback will help us improve your experience
Punam Devi and 88 other Physics 101 Mechanics educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Two steel plates are fastened together using four bolts. The bolts each have a shear modulus of $80 \mathrm{GPa}$ and a shear strength of 600 MPa. The radius of each bolt is $1.0 \mathrm{cm} .$ Normally, the bolts clamp the two plates together and the frictional forces between the plates keep them from sliding. If the bolts are loose, then the frictional forces are small and the bolts themselves would be subject to a large shear stress. What is the maximum shearing force $F$ on the plates that the four bolts can withstand?
Two steel plates are fastened together using four bolts. The bolts each have a shear modulus of $8.0 \times 10^{10} \mathrm{Pa}$ and a shear strength of $6.0 \times 10^{8} \mathrm{Pa} .$ The radius of each bolt is $1.0 \mathrm{cm} .$ Normally, the bolts clamp the two plates together and the frictional forces between the plates keep them from sliding. If the bolts are loose, then the frictional forces are small and the bolts themselves would be subject to a large shear stress. What is the maximum shearing force $F$ on the plates that the four bolts can withstand? (IMAGE NOT COPY)

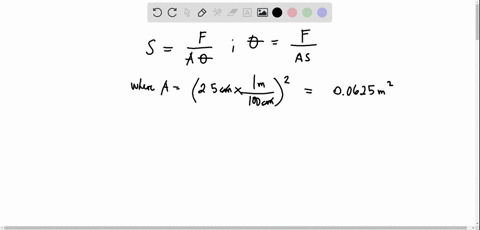

Two parallel oppositely directed forces, each $4000 \mathrm{~N}$, are applied tangentially to the upper and lower faces of a cubical metal block $25 \mathrm{~cm}$ on a side. Find the angle of shear and the displacement of the upper surface relative to the lower surface. The shear modulus for the metal is 80 GPa.
