Use Ampere's Law to determine the magnetic field (a) inside and (b) outside the toroid shown in the diagram below. Hint: use Path 1 for (a) and Path 2 for (b). Path 1 r Path 2 (c) Show that the self-inductance $L$ of the toroid, which contains $N$ loops each of diameter $d$, is $L = frac{mu_0 N^2 d^2}{8r}$. Assume that the $B$ field is uniform inside the toroid and that $r >> d$. Is this resultant consistent with the self-inductance for a solenoid?

Transcript

00:02 Hello, in the question we have given that use ampere's law to determine the magnetic field.

00:07 So let us see what is the ampere's law first.

00:11 So ampere's law, so it states that close integral b bar dot dl bar is equal to mu naught i enclosed.

00:25 So this is the formula.

00:28 Now what we have to do is we have to find out the magnetic field inside and outside the toroid.

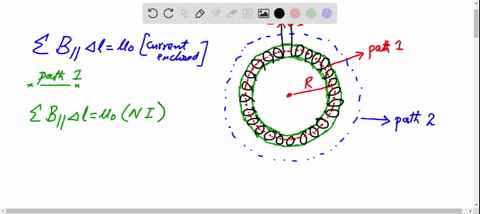

00:37 So as shown in the diagram below, so they have mentioned one hint that we can use path 1 for a and path 2 for b.

00:48 So let us use the path 1.

00:51 So as the hint suggests, so let us use path 1.

00:56 So the first part we will use path 1.

01:00 So according to the path 1, the close integral.

01:04 So this ampere's law will be this b bar dot dl bar is equal to mu naught i.

01:16 I enclosed is i because this current in this loop is i.

01:20 So it will be mu naught i.

01:26 So but now there are n number of turns.

01:30 So i should multiply this by n because there are n number of turns in this coil given.

01:38 So from here this close integral over dl.

01:44 So this b times this will be 2 pi r because that radial distance, the distance between from the center to that path 1 is given to be r.

01:59 So it will be the circumference.

02:01 So dl is the length element.

02:03 So the length of that path 1 will be 2 pi r that is equal to mu naught n i.

02:09 So from here this b will be equal to mu naught n i divided by 2 pi r.

02:17 So this is what we get.

02:19 So this is the magnetic field which we get inside the toroid.

02:31 Now outside the toroid.

02:32 So outside the toroid.

02:35 So this is the magnetic field inside toroid.

02:41 Now outside the toroid, that is if i consider the path 2, so this magnetic field.

02:47 So again if we use b dot dl close integral b dot dl is equal to mu naught i enclosed.

02:59 So this mu naught, this i enclosed is 0.

03:03 So if the i enclosed, there is no current enclosed in this loop 2, in this path 2.

03:09 So if the enclosed current is 0, so therefore this magnetic field will be 0 in this case.

03:16 So for the path 2.

03:19 Now in the third path, they are saying that show that the self -inductance l of a toroid which contains n loop of diameter d.

03:28 So the diameter is given.

03:35 So the diameter is d...
