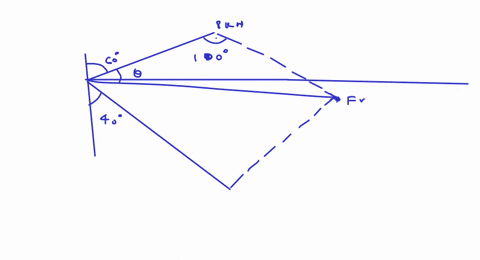

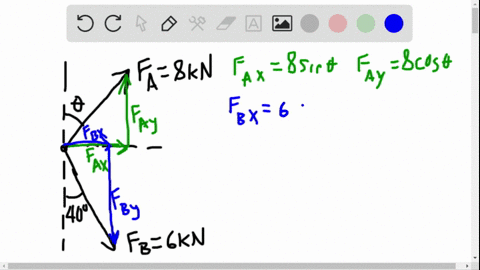

Q.4. The plate is subjected to the two forces at A and B as shown. If $\theta = 60^\circ$, determine the magnitude of the resultant of these two forces and its direction measured clockwise from the horizontal. $\theta$ A $F_A = 8 \text{ kN}$ $40^\circ$ B $F_B = 6 \text{ kN}$

          Q.4.
The plate is subjected to the two forces at A and B as
shown. If $\theta = 60^\circ$, determine the magnitude of the resultant
of these two forces and its direction measured clockwise
from the horizontal.
