Question

Use the following information to answer the next question. An oil-drop, that has a mass of \( 3.5 \times 10^{-15} \mathrm{~kg} \) and an excess of 7 electrons, is located between horizontal parallel plates. The plates are separated by a distance of 2.5 cm and have and potential difference of \( 4.8 \times 10^{2} \mathrm{~V} \) between them. Positively charged plate Charged Particle Plate separation \( =2.5 \mathrm{~cm} \) Negatively charged plate - Draw the electric field lines showing the electric field direction and shape between the parallel plates above. (1 mark) - Determine the magnitude and direction of the acceleration on the charged particle. (4 marks)

          Use the following information to answer the next question.
An oil-drop, that has a mass of \( 3.5 \times 10^{-15} \mathrm{~kg} \) and an excess of 7 electrons, is located between horizontal parallel plates. The plates are separated by a distance of 2.5 cm and have and potential difference of \( 4.8 \times 10^{2} \mathrm{~V} \) between them.

Positively charged plate

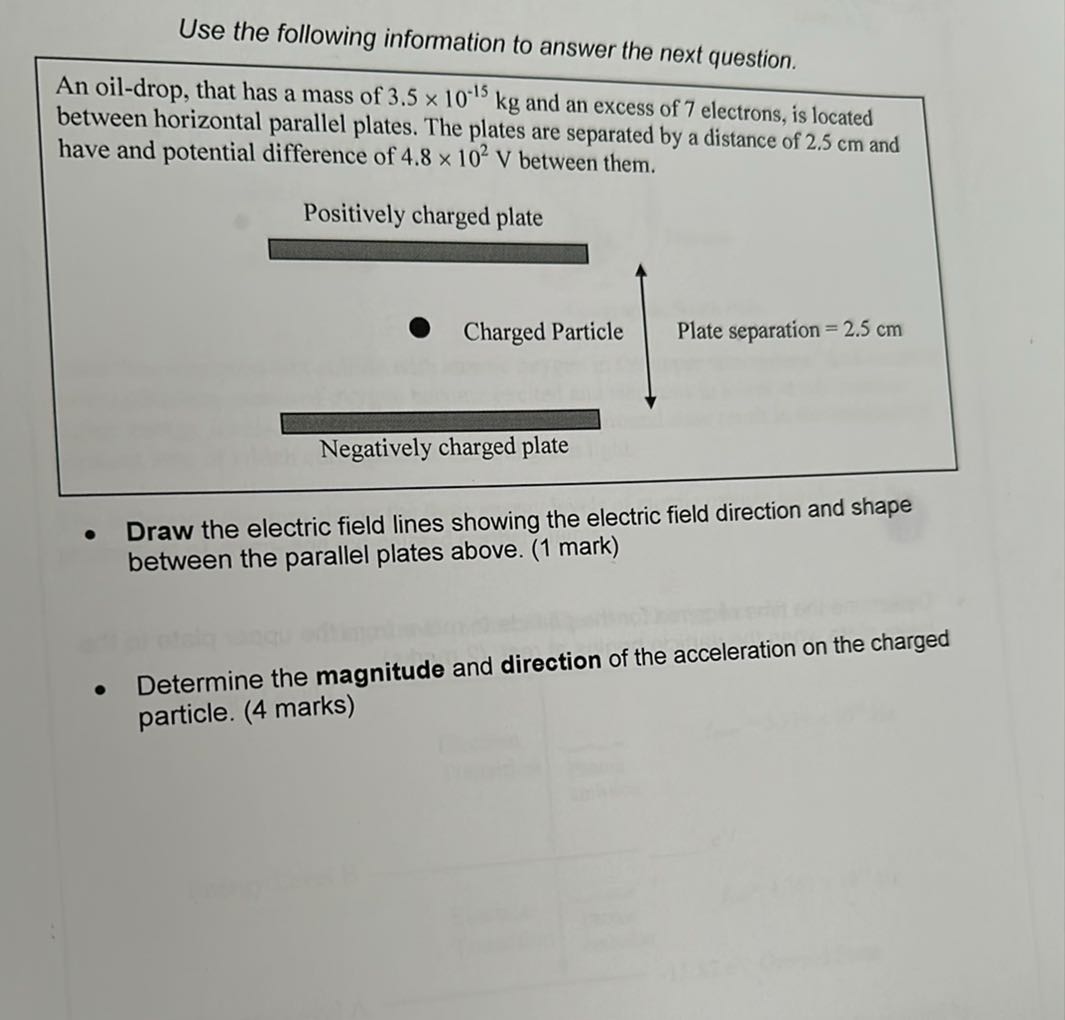

Charged Particle
Plate separation \( =2.5 \mathrm{~cm} \)

Negatively charged plate
- Draw the electric field lines showing the electric field direction and shape between the parallel plates above. (1 mark)
- Determine the magnitude and direction of the acceleration on the charged particle. (4 marks)

Use the following information to answer the next question.
An oil-drop, that has a mass of 3.5 × 10^-15 kg and an excess of 7 electrons, is located between horizontal parallel plates. The plates are separated by a distance of 2.5 cm and have and potential difference of 4.8 × 10^2 V between them.

Positively charged plate

Charged Particle
Plate separation =2.5 cm

Negatively charged plate
- Draw the electric field lines showing the electric field direction and shape between the parallel plates above. (1 mark)
- Determine the magnitude and direction of the acceleration on the charged particle. (4 marks)
