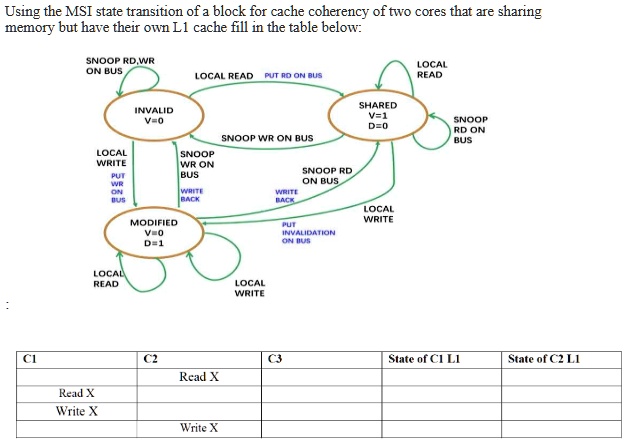

Using the MSI state transition of a block for cache coherency of two cores that are sharing memory but have their own L1 cache fill in the table below: SNOOP RD,WR ON BUS LOCAL READ PUT RD ON BUS LOCAL READ INVALID V=0 SHARED V=1 D=0 SNOOP WR ON BUS SNOOP RD ON BUS LOCAL WRITE PUT WR ON BUS SNOOP WR ON BUS WRITE BACK MODIFIED V=0 D=1 SNOOP RD ON BUS WRITE BACK LOCAL WRITE PUT INVALIDATION ON BUS LOCAL READ LOCAL WRITE C1 C2 C3 State of C1 L1 State of C2 L1 Read X Read X Write X Write X
Added by Patrick B.
Close
Step 1
Initially, both C1 and C2 are in the Invalid state (I), as they have not yet accessed the block. Show more…
Show all steps
Your feedback will help us improve your experience
Akash M and 66 other AP CS educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Supreeta N.
Given the following processor configuration of processor P1: Physical Address PC Physical Address Inst. Cache L1 Data Cache L1 Decode ^ Physical Address Memory Controller Physical Address L2 L3 Main Memory Assume base CPI = 1 without memory stalls; assume L1 hit occurs within base CPI. L1 access time = 1 cycle (accounted for within base CPI), L1 miss rate = 10%. L2 access time = 10 cycles, L2 miss rate = 40%. L3 access time = 50 cycles, L3 miss rate = 80%, Main memory access time = 100 cycles. 80% of instructions access L1 data cache. 1. Find the AMAT of P1 (4 pts) 2. Find the overall CPI of P1 (6 pts)
Akash M.
Draw a diagram of the following caches (note: answer for part A is provided. Follow the same structure for part B and C) A. Direct-mapped, cache capacity = 64 cache line, cache line size = 8-byte, word size = 4-byte, write strategy: write through B. Fully-associative, cache capacity = 256 cache line, cache line size = 16-byte, word size = 4-byte, write strategy: write back C. 4-way set-associative, cache capacity = 4096 cache line, cache line size = 64-byte, word size = 4-byte, write strategy: write back
