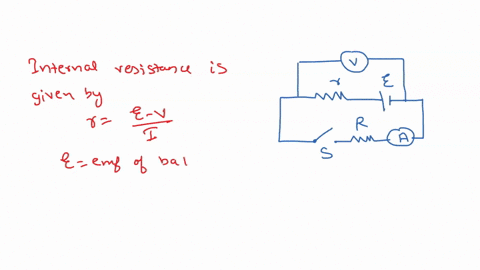

V3.08V2.93VA1.61ArrS in the figure is open, the voltmeter V of the battery reads 3.08V. When the switch is closed, the voltmeter reading drops to 2.93V, and the ammeter A reads 1.61A. Assume that the two meters are ideal, so they do not affect the circuit. (Figure 1) Figure 1 of 1 1 of 1 Correct Part B Find the internal resistance r of the battery. Express your answer in ohms to four significant digits. View Available Hint(s) Part B Find the internal resistance r of the battery. Express your answer in ohms to four significant digits. View Available Hint(s) Part C Complete previous part(s) Provide Feedback Help <HW-5 Measuring the EMF and Internal Resistance of a Battery 4 of5> Constants I Periodic Table Correct When switch S in the figure is open, the voltmeter V of the battery reads 3.08 V . When the switch is closed, the voltmeter reading drops to 2.93 V , and the ammeter A reads 1.61 A . Assume that the two meters are ideal, so they do not affect the circuit. (Figure 1) Part B Find the internal resistance r of the battery Figure Express your answer in ohms to four significant digits. View Available Hint(s) 1of 1 Submit Part C Complete previous part(s) Provide Feedback
