4. A metal rod moves with constant velocity along two parallel metal rails connected with a strip of metal at one side as shown in Figure. A magnetic field B = 0.35 T points out of the page. If the rails are separated by distance $L = 25$ cm and the speed of the rod is $v = 55$ cm/s, find a) the induced emf and direction of induced current (15pts) b) the amount of heat released in this system in 3 min if the rod has resistance of $18 \Omega$ and the rails have negligible resistance. (15pts)
Added by Hannah P.
Close
Step 1
Therefore, we need to find it from the given information. Since the rails have negligible resistance, we can assume that the induced emf is due to the motion of the conductor in a magnetic field. The induced emf is given by the equation: emf = B * v * L where Show more…
Show all steps
Your feedback will help us improve your experience
Suman K and 68 other Physics 103 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
Two parallel conducting rails in a horizontal plane are separated by a distance of 0.188 m and are connected by resistor R = 82.0822 Γ΄. They are in a region of spatially-uniform magnetic field that points into the page as shown in the figure. The conducting bar in electrical contact with the rails is being pulled away from the resistor at a constant speed of v = 24.75 m/s by an external agent. If the induced current is 0.0464 A, what is the magnitude of the magnetic field B? 0.852023210831722 T 0.811450676982592 T 0.933168278529981 T 0.97374081237911 T 608588007736944 T
Suman K.

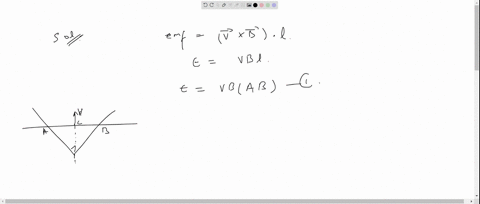

Two straight conducting rails form a right angle where their ends are joined. A conducting bar in contact with the rails starts at the vertex at $t=0$ and moves with a constant velocity $v$ along them as shown in Fig. $16.59 .$ A magnetic field $B$ is directed into the page. The induced EMF in the circuit at any time $t$ is proportional to (A) $t^{0}$ (B) $t$ (C) $v$ (D) $v^{2}$
Two straight conducting rails form a right angle where their ends are joined. A conducting bar in contact with the rails starts at the vertex at $t=0$ and moves with a constant velocity $v$ along them as shown in Fig. $16.59$. A magnetic field $B$ is directed into the page. The induced EMF in the circuit at any time $t$ is proportional to (A) $t^{0}$ (B) $t$ (C) $v$ (D) $v^{2}$
