W U W h ↑ A block of weight W=21.6 N is being pulled over a table by another weight Wo= 29.8 N, as shown in the figure. The block bottom area A=38.7 cm² is in contact with the oil. Neglect the cord weight and the pulley friction. Assume a linear velocity profile in the oil film. What is the steady velocity U of the block if it slides on an oil film of thickness h= 1.66 cm and viscosity μ=8.959 kg/(m.s)? Your answer should be in m/s. Answer:

Name: w u w h a block of weight w216 n is being pulled over a table by another weight wo 298 n as shown in the figure the block bottom area a387 cm2 is in contact with the oil neglect the cord wei 93884
Uploaded: 2024-04-05T11:13:54-08:00
Duration: 1 min 55 s
Channel: Narayan Hari
Description: w u w h a block of weight w216 n is being pulled over a table by another weight wo 298 n as shown in the figure the block bottom area a387 cm2 is in contact with the oil neglect the cord wei 93884

          W
U
W
h
↑
A block of weight W=21.6 N is being pulled over a table by another weight Wo= 29.8 N, as
shown in the figure. The block bottom area A=38.7 cm² is in contact with the oil. Neglect
the cord weight and the pulley friction. Assume a linear velocity profile in the oil film. What
is the steady velocity U of the block if it slides on an oil film of thickness h= 1.66 cm and
viscosity μ=8.959 kg/(m.s)? Your answer should be in m/s.
Answer:

w u w h a block of weight w216 n is being pulled over a table by another weight wo 298 n as shown in the figure the block bottom area a387 cm2 is in contact with the oil neglect the cord wei 93884

Added by Todd M.

University Physics with Modern Physics

Hugh D. Young 14th Edition

Instant Answer

Solved by Expert Narayan Hari

04/05/2024

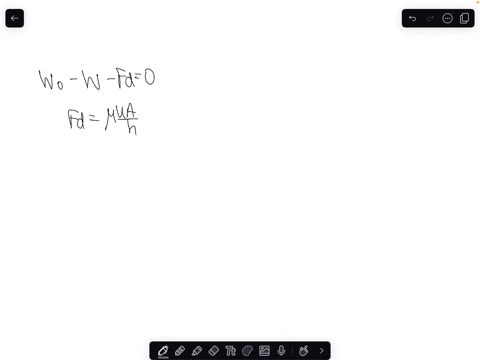

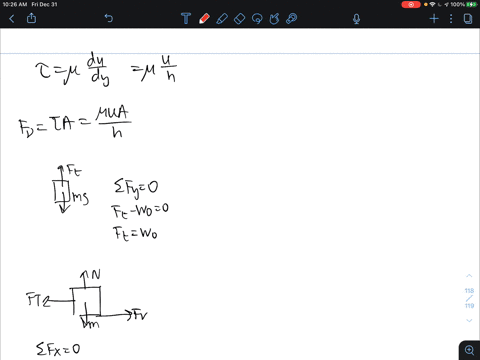

Step 1

8 N$. The area of the block in contact with the oil is $A = 38.7 cm^2 = 38.7 \times 10^{-4} m^2 = 0.00387 m^2$. The thickness of the oil film is $h = 1.66 cm = 1.66 \times 10^{-2} m = 0.0166 m$. The viscosity of the oil is $\mu = 8.959 kg/(m.s)$. Show more…

Show all steps
