What is the effective numerical aperture of your microscope when using the 100X lens without oil and when using the 100X lens with oil? Briefly explain how you came up with these values. Numerical Aperture without oil : _______ Explaination : _________ Numerical Aperture with oil : _______ Explaination : _________
Added by Anna A.
Step 1
We can find this by multiplying the focal length of the lens by the magnification. For our example, the focal length is 100mm and the magnification is 100x. Show more…
Show all steps
Your feedback will help us improve your experience
Madhur L and 96 other Biology educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos
List the magnification and numerical aperture for each objective on your microscope.
Adi S.

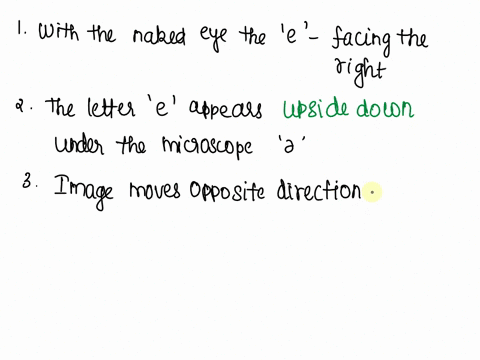

Oil Immersion 10X Condenser Lens N/A 10X N/A 1.25 With what you know concerning how a microscope produces an image, imagine you are viewing this letter ‘’e’’ slide under low power magnification. Follow the instructions given in the table below and sketch your hypothetical observations and answer the prompts. Appearance of the ‘’e’’ with the Naked Eye Appearance of the ‘’e’’ Under the Microscope When the stage moves to the right, the image moves to the... When the stage moves toward you, the image moves... 4) ‘’a’’ and ‘’b’’ below are questions five (5) and seven (7) respectively, from your lab manual: a. On a given microscope, the numerical apertures of the condenser and low power objective lenses are 1.25 and 0.25 respectively. You are supplied with a filter that selects a wavelength of 520 nm. i. What is the limit of resolution of this microscope? Show your work.
Madhur L.

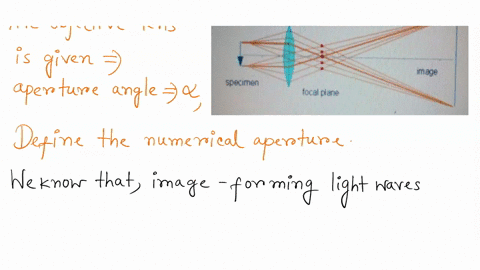

c) Explain the Abbe theory of image formation in a microscope using the figure below, indicate the aperture angle ̑. Define the numerical aperture for an objective lens in a microscope. objective lens specimen focal plane image (i) Estimate the maximum spatial frequency that is resolvable by an oil immersion objective lens which has an acceptance cone of 134 deg and uses an immersion oil of refractive index n = 1.515. Estimate the size of the smallest object that is resolvable with the microscope and find the maximum useful magnification required for the human eye to see this object. Assume that the wavelength of light is λ= 0.55 μm.
Sri K.
