Question

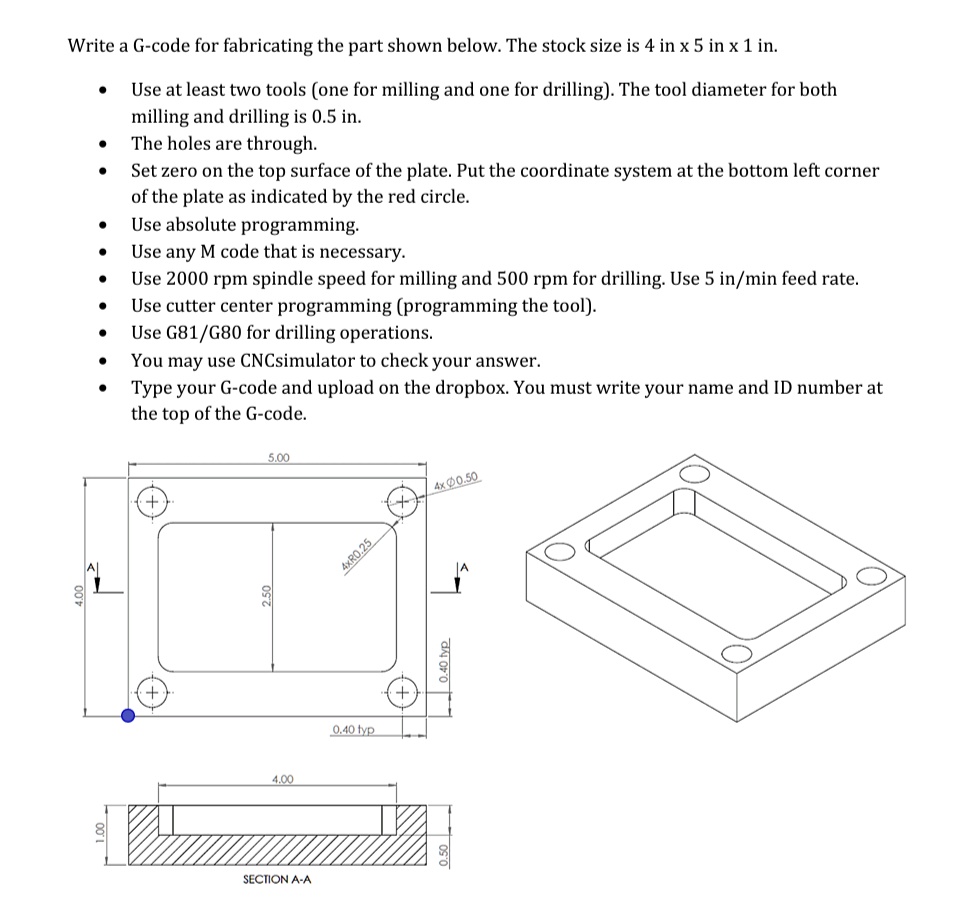

Write a G-code for fabricating the part shown below. The stock size is 4 in x 5 in x 1 in. • Use at least two tools (one for milling and one for drilling). The tool diameter for both milling and drilling is 0.5 in. • The holes are through. • Set zero on the top surface of the plate. Put the coordinate system at the bottom left corner of the plate as indicated by the red circle. • Use absolute programming. • Use any M code that is necessary. • Use 2000 rpm spindle speed for milling and 500 rpm for drilling. Use 5 in/min feed rate. • Use cutter center programming (programming the tool). • Use G81/G80 for drilling operations. • You may use CNCsimulator to check your answer. • Type your G-code and upload on the dropbox. You must write your name and ID number at the top of the G-code.

          Write a G-code for fabricating the part shown below. The stock size is 4 in x 5 in x 1 in.
• Use at least two tools (one for milling and one for drilling). The tool diameter for both
milling and drilling is 0.5 in.
• The holes are through.
• Set zero on the top surface of the plate. Put the coordinate system at the bottom left corner
of the plate as indicated by the red circle.
• Use absolute programming.
• Use any M code that is necessary.
• Use 2000 rpm spindle speed for milling and 500 rpm for drilling. Use 5 in/min feed rate.
• Use cutter center programming (programming the tool).
• Use G81/G80 for drilling operations.
• You may use CNCsimulator to check your answer.
• Type your G-code and upload on the dropbox. You must write your name and ID number at
the top of the G-code.

Write a G-code for fabricating the part shown below. The stock size is 4 in x 5 in x 1 in.
• Use at least two tools (one for milling and one for drilling). The tool diameter for both
milling and drilling is 0.5 in.
• The holes are through.
• Set zero on the top surface of the plate. Put the coordinate system at the bottom left corner
of the plate as indicated by the red circle.
• Use absolute programming.
• Use any M code that is necessary.
• Use 2000 rpm spindle speed for milling and 500 rpm for drilling. Use 5 in/min feed rate.
• Use cutter center programming (programming the tool).
• Use G81/G80 for drilling operations.
• You may use CNCsimulator to check your answer.
• Type your G-code and upload on the dropbox. You must write your name and ID number at
the top of the G-code.
