Write an equation of the discrete-time signal shown below in terms of discrete unit step functions and/or delta functions (u[n] and/or S[n]):
Added by Brooke Z.
Close
Step 1
Step 1: Read off the nonzero samples from the plot: x[-6] = 1, x[-5] = 1, x[-4] = 1; x[-3] = -2, x[-2] = -2, x[-1] = -2; x[ 1] = 2, x[ 2] = 2; x[ 3] = -1, x[ 4] = -1, x[ 5] = -1. Show more…
Show all steps
Your feedback will help us improve your experience
Syed Mustafa and 79 other Calculus 3 educators are ready to help you.
Ask a new question
Labs
Want to see this concept in action?
Explore this concept interactively to see how it behaves as you change inputs.
Key Concepts
Recommended Videos

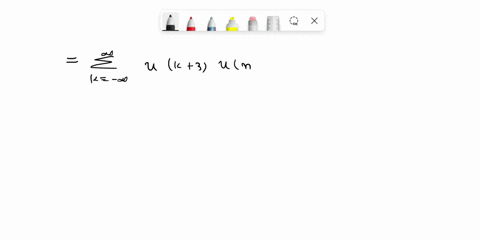

A discrete-time signal x[n] is shown in Fig. Sketch and label each of the following signals. a) x[n]u[3 - n] b) x[n]u[n - 3] c) x[n]{u[n + 2] - u[n]} d) x[n]δ[n - 2] Express the signals shown in Fig: in terms of unit step functions.
Adi S.
Madhur L.

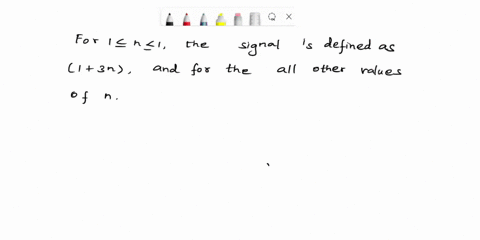

A discrete-time signal x(n) is defined as x(n) = {1 + n/3, -3 <= n <= -1; 1, 0 <= n <= 3; 0, elsewhere} a. Determine its values and sketch the signal x(n). b. Sketch the signals that result if we: 1. First fold x(n) and then delay the resulting signal by four samples. 2. First delay x(n) by four samples and then fold the resulting signal. c. Sketch the signal x(-n + 4). d. Compare the results in parts (b) and (c) and derive a rule for obtaining the signal x(-n + k) from x(n). e. Can you express the signal x(n) in terms of signals delta(n) and u(n)?
