College Physics: A Strategic Approach

Randall D. Knight, Brian Jones, Stuart Field

Chapter 26

AC Electricity - all with Video Answers

Educators


Chapter Questions

00:56

Problem 1

A $200 \Omega$ resistor is connected to an AC source with $\mathcal{E}_{0}=10 \mathrm{V} .$ What is the peak current through the resistor if the

Mark Scythian
Mark Scythian
Numerade Educator
01:06

Problem 2

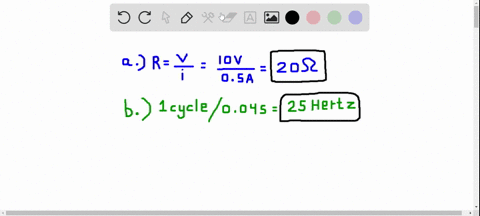

Figure $\mathrm{P} 26.2$ shows voltage and current graphs for a resistor.
a. What is the value of the resistance $R ?$
b. What is the emf frequency $f ?$

Mark Scythian
Mark Scythian
Numerade Educator
01:22

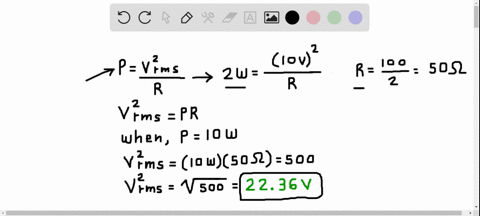

Problem 3

A resistor dissipates $2.00 \mathrm{W}$ when the rms voltage of the emf is $10.0 \mathrm{V}$. At what $\mathrm{rms}$ voltage will the resistor dissipate $10.0 \mathrm{W} ?$

Mark Scythian
Mark Scythian
Numerade Educator
00:34

Problem 4

The heating element of a hair dryer dissipates $1500 \mathrm{W}$ when connected to a $120 \mathrm{V}$ outlet. What is the resistance?

Mark Scythian
Mark Scythian
Numerade Educator
01:33

Problem 5

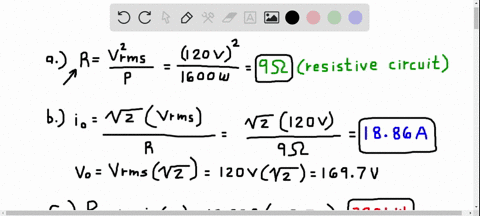

A toaster oven is rated at $1600 \mathrm{W}$ for operation at $120 \mathrm{V}, 60 \mathrm{Hz}$.
a. What is the resistance of the oven heater element?
b. What is the peak current through it?
c. What is the peak power dissipated by the oven?

Mark Scythian
Mark Scythian
Numerade Educator
00:56

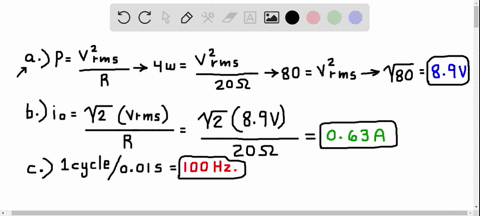

Problem 6

III The instantaneous power dissipated by a $20 \Omega$ resistor connected to an $\mathrm{AC}$ source is
shown in Figure P26.6.
a. What is the rms voltage across the resistor?
b. What is the peak current through the resistor?
c. What is the frequency of the $\mathrm{AC}$ source?

Mark Scythian
Mark Scythian
Numerade Educator
01:03

Problem 7

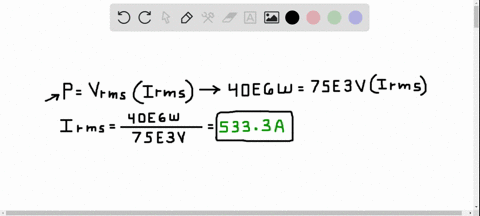

A generator produces 40 MW of power and sends it to town at an rms voltage of $75 \mathrm{kV}$. What is the rms current in the transmission lines?

Mark Scythian
Mark Scythian
Numerade Educator
01:09

Problem 8

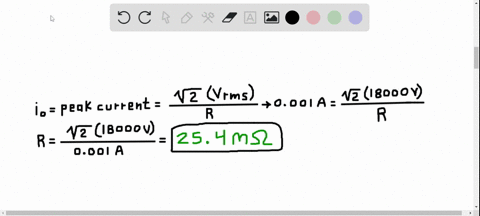

Soles of boots that are designed to protect workers from electric shock are rated to pass a maximum rms current of $1.0 \mathrm{mA}$ when connected across an $18,000 \mathrm{V} \mathrm{AC}$ source. What is the minimum allowed resistance of the sole?

Mark Scythian
Mark Scythian
Numerade Educator
01:01

Problem 9

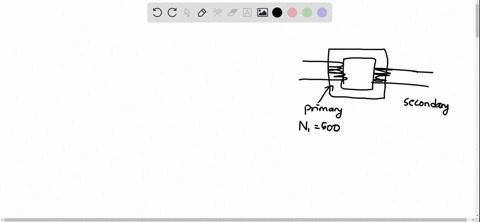

The primary coil of a transformer is connected to a $120 \mathrm{V}$ wall outlet. The secondary coil is connected to a lamp that dissipates $60 \mathrm{W}$. What is the rms current in the primary coil?

Mark Scythian
Mark Scythian
Numerade Educator
03:04

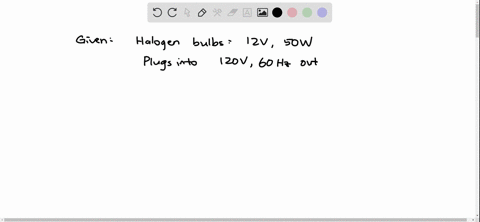

Problem 10

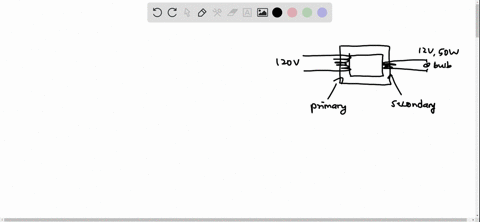

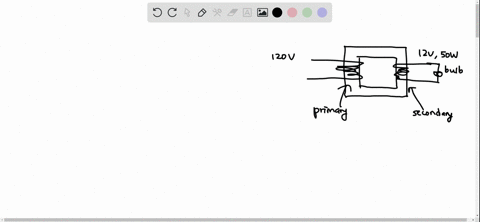

A microscope illuminator uses a transformer to step down the $120 \mathrm{V} \mathrm{AC}$ of the wall outlet to power a $12.0 \mathrm{V}, 50 \mathrm{W}$ microscope bulb.
a. What is the resistance of the bulb filament?
b. What is the rms current in the bulb filament?
c. What is the rms current in the primary coil?

Vishal Gupta
Vishal Gupta
Numerade Educator
00:49

Problem 11

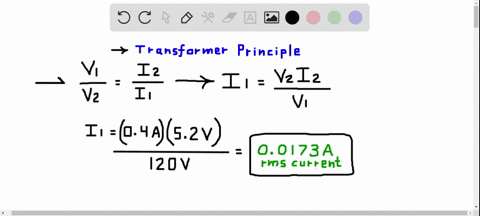

A power pack charging a cell phone battery has an output of $0.40 \mathrm{A}$ at $5.2 \mathrm{V}$ (both $\mathrm{rms}$ ). What is the rms current at the $120 \mathrm{V}$ wall outlet where the power pack is plugged in?

Mark Scythian
Mark Scythian
Numerade Educator
03:18

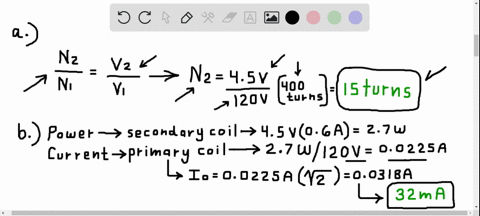

Problem 13

II The "power cube" transformer for a portable CD player has an output of $4.5 \mathrm{V}$ and $600 \mathrm{mA}$ (both rms) when plugged into a $120 \mathrm{V}$ outlet.
a. If the primary coil has 400 turns of wire, how many turns are on the secondary coil?
b. What is the peak current in the primary coil?

Mark Scythian
Mark Scythian
Numerade Educator
00:31

Problem 14

Electricity is distributed to neighborhoods at a relatively high AC voltage, often $7200 \mathrm{V}$. Transformers mounted on utility poles then transform this high voltage down to the $120 \mathrm{V}$ used in homes. A typical transformer of this kind can handle as much as $15 \mathrm{kW}$ of electric power flowing through it from its primary to its secondary. What is the primary current at this maximum power?

Mark Scythian
Mark Scythian
Numerade Educator
01:37

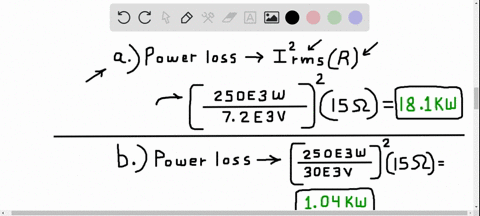

Problem 15

A generator produces $250 \mathrm{kW}$ of electric power at $7.2 \mathrm{kV}$. The current is transmitted to a remote village through wires with a total resistance of $15 \Omega$.
What is the power loss due to resistance in the wires?
b. What is the power loss if the voltage is increased to $30 \mathrm{kV} ?$

Mark Scythian
Mark Scythian
Numerade Educator
00:57

Problem 16

In an old house, the wires leading to a $120 \mathrm{V}$ outlet have a total resistance of $0.45 \Omega .$ When you plug in a hair dryer, it draws a 12 A current.
a. How much does the outlet voltage decrease due to the voltage drop across the wires?
b. What is the power dissipated as heat in the wires?

Mark Scythian
Mark Scythian
Numerade Educator
01:02

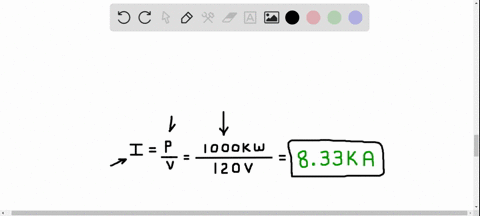

Problem 17

A typical American family uses $1000 \mathrm{kWh}$ of electricity a month. What is the average rms current in the $120 \mathrm{V}$ power line to a tynical house?

Mark Scythian
Mark Scythian
Numerade Educator
02:14

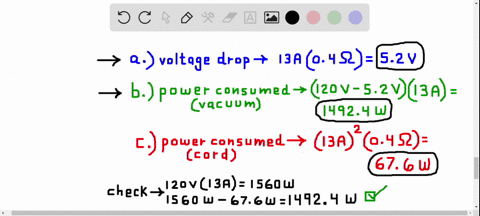

Problem 18

If If you use an extension cord, current travels from the $120 \mathrm{V}$ outlet, along one wire inside the cord, through the appliance you've plugged into the cord, and back to the outlet through a second wire in the cord. The total resistance of the two wires in
a light-duty extension cord is $0.40 \Omega ;$ the current through such a cord should be limited to 13 A. If a 13 A shop vacuum is powered using this cord,
What is the voltage drop across the vacuum?
b. How much power does the vacuum use?
c. How much power is dissipated in the cord?

Mark Scythian
Mark Scythian
Numerade Educator
00:39

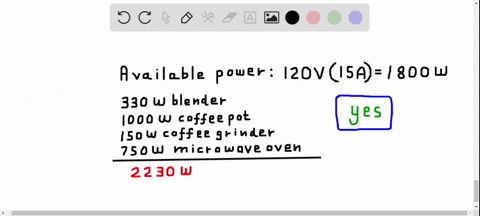

Problem 19

II The following appliances are connected to a single $120 \mathrm{V}$, 15 A circuit in a kitchen: a 330 W blender, a 1000 W coffeepot, a $150 \mathrm{W}$ coffee grinder, and a $750 \mathrm{W}$ microwave oven. If these are all turned on at the same time, will they trip the circuit breaker?

Mark Scythian
Mark Scythian
Numerade Educator
01:08

Problem 20

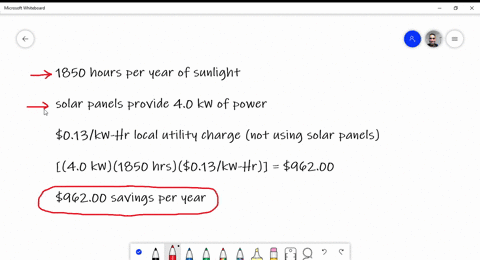

In Fort Collins, Colorado, the sun shines for an average of 1850 hours per year. A homeowner installs a set of solar panels that provide $4.0 \mathrm{kW}$ of electric power when the sun shines. If the local utility charges $\$ 0.13 / \mathrm{kWh},$ how much will she save each year on electricity because of her solar panels?

Mark Scythian
Mark Scythian
Numerade Educator
01:30

Problem 21

A $60 \mathrm{W}$ ( $120 \mathrm{V}$ ) night light is turned on for an average of $12 \mathrm{h}$ a day year round. What is the annual cost of electricity at a billing rate of $\$ 0.10 / \mathrm{kWh} ?$

Mark Scythian
Mark Scythian
Numerade Educator
01:41

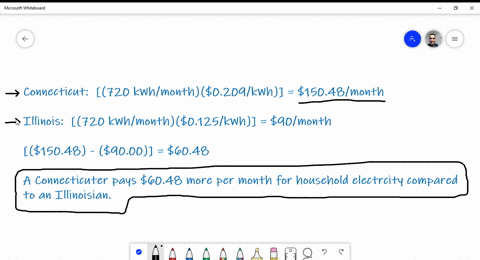

Problem 22

Electricity prices vary widely from state to state. In Connecticut, for instance, electricity costs $\$ 0.209 / \mathrm{kWh},$ while in Illinois the cost is $\$ 0.125 / \mathrm{kWh} .$ On average, residents of both states use about $720 \mathrm{kWh}$ of electricity per month. How much more per year does a Connecticuter (look it up!) pay for electricity than an Illinoisan?

Mark Scythian
Mark Scythian
Numerade Educator
01:31

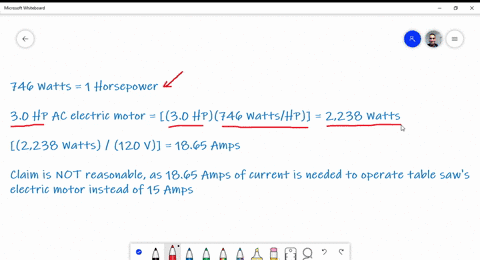

Problem 23

The manufacturer of an electric table saw claims that it has
a 3.0 horsepower motor. 1 horsepower is approximately 750 W. It is designed to be used on a normal $120 \mathrm{V}$ outlet with a $15 \mathrm{A}$ circuit breaker. Is this claim reasonable? Explain.

Mark Scythian
Mark Scythian
Numerade Educator
00:35

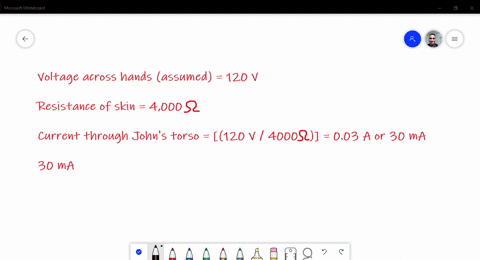

Problem 24

John is changing a lightbulb in a lamp. It's a warm summer evening, and the resistance of his damp skin is only $4000 \Omega$. While one hand is holding the grounded metal frame of the lamp, the other hand accidentally touches the hot electrode in the base of the socket. What is the current through his torso?

Mark Scythian
Mark Scythian
Numerade Educator
00:45

Problem 25

In some countries $\mathrm{AC}$ outlets near bathtubs are restricted
to a maximum of $25 \mathrm{V}$ to minimize the chance of dangerous shocks while bathing. A man is in the tub; the lower end of his torso is well grounded, and the skin resistance of his wet, soapy hands is negligible. He reaches out and accidentally touches a live electric wire. What voltage on the wire would produce a dangerous $100 \mathrm{mA}$ current?

Mark Scythian
Mark Scythian
Numerade Educator
01:00

Problem 26

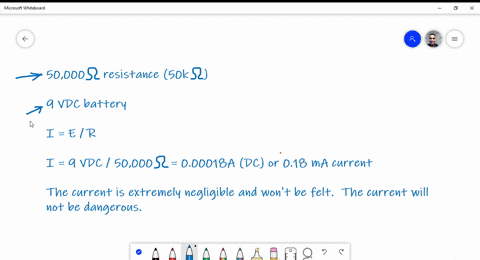

If you touch the terminal of a battery, the small area of contact means that the skin resistance will be relatively large; $50 \mathrm{k} \Omega$ is a reasonable value. What current will pass through your body if you touch the two terminals of a $9.0 \mathrm{V}$ battery with your two hands? Will you feel it? Will it be dangerous?

Mark Scythian
Mark Scythian
Numerade Educator
00:48

Problem 27

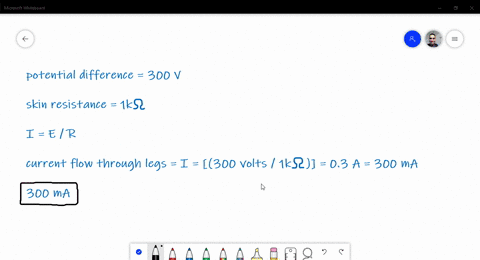

A person standing barefoot on the ground $20 \mathrm{m}$ from the point of a lightning strike experiences an instantaneous potential difference of 300 V between his feet. If we assume a skin
resistance of $1.0 \mathrm{k} \Omega,$ how much current goes up one leg and back down the other?

Mark Scythian
Mark Scythian
Numerade Educator
04:56

Problem 28

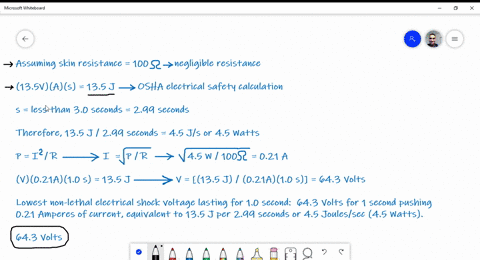

Occupational safety experts have developed an alternative criterion for electrical safety. They have found that shocks lasting less than 3 s will be nonlethal if the product of the voltage drop across the body, the current through the body, and the time $(\leq 3.0 \mathrm{s})$ that the current flows does not exceed $13.5 \mathrm{V} \cdot \mathrm{A} \cdot \mathrm{s}=13.5 \mathrm{J} .$ Suppose that one hand of a potential
victim is grounded and the other hand touches a voltage source; suppose further that his skin resistance is negligible $-$ a worstcase scenario. Using the criterion above, what is the lowest voltage that will not be lethal for a shock that lasts $1.0 \mathrm{s} ?$

Mark Scythian
Mark Scythian
Numerade Educator
01:04

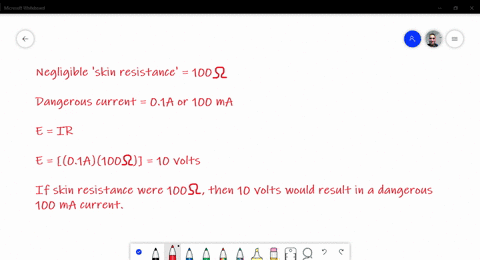

Problem 29

A fisherman has netted a torpedo ray. As he picks it up, this electric fish creates a short-duration $50 \mathrm{V}$ potential difference between his hands. His hands are wet with salt water, and so
his skin resistance is a very low $100 \Omega .$ What current passes through his body? Will he feel this DC pulse?

Mark Scythian
Mark Scythian
Numerade Educator
02:25

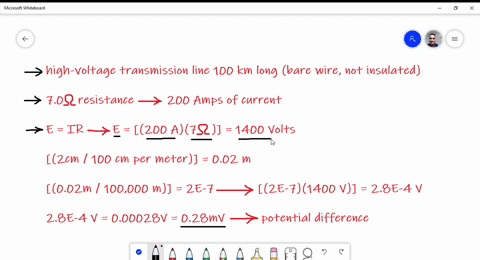

Problem 30

A bird is perched on the wire with its feet $2.0 \mathrm{cm}$ apart. What is the potential difference between its feet?

Mark Scythian
Mark Scythian
Numerade Educator
02:59

Problem 31

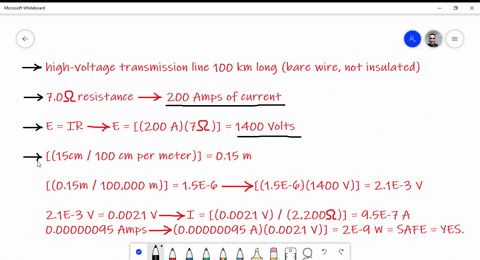

Would it be possible for a person to safely hang from this wire? Assume that the hands are $15 \mathrm{cm}$ apart, and assume a skin resistance of $2200 \Omega$.

Mark Scythian
Mark Scythian
Numerade Educator
02:12

Problem 32

$\mathrm{A} 0.30 \mu \mathrm{F}$ capacitor is connected across an $\mathrm{AC}$ generator that produces a peak voltage of $10.0 \mathrm{V}$. What is the peak current through the capacitor if the emf frequency is
(a) $100 \mathrm{Hz} ?$
(b) $100 \mathrm{kHz} ?$

Mark Scythian
Mark Scythian
Numerade Educator
01:48

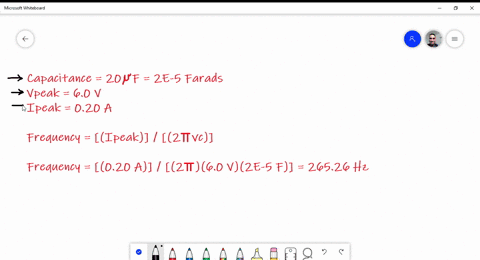

Problem 33

$\mathrm{A} 20 \mu \mathrm{F}$ capacitor is connected across an $\mathrm{AC}$ generator that produces a peak voltage of $6.0 \mathrm{V}$. The peak current is $0.20 \mathrm{A}$. What is the oscillation frequency in Hz?

Mark Scythian
Mark Scythian
Numerade Educator
02:58

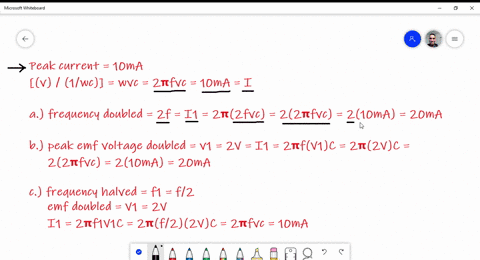

Problem 34

The peak current through a capacitor is $10.0 \mathrm{mA}$. What is the current if
a. The emf frequency is doubled?
b. The emf peak voltage is doubled (at the original frequency)?
c. The frequency is halved and, at the same time, the emf is doubled?

Mark Scythian
Mark Scythian
Numerade Educator
02:42

Problem 35

Figure $\mathrm{P} 26.35$ shows voltage and current graphs for a capacitor.
What is the frequency of the voltage across the capacitor?
b. What is the value of the capacitance?

Mark Scythian
Mark Scythian
Numerade Educator
02:33

Problem 36

A capacitor is connected across an AC source. At one instant in time, the current through the capacitor is $23 \mathrm{mA}$ when the voltage across the capacitor is changing at a rate of $7.2 \times 10^{4} \mathrm{V} / \mathrm{s} .$ What is the value of the capacitance?

Mark Scythian
Mark Scythian
Numerade Educator
01:29

Problem 37

The peak current through a capacitor is $8.0 \mathrm{mA}$ when connected to an AC source with a peak voltage of $1.0 \mathrm{V}$. What is the capacitive reactance of the capacitor?

Mark Scythian
Mark Scythian
Numerade Educator
03:26

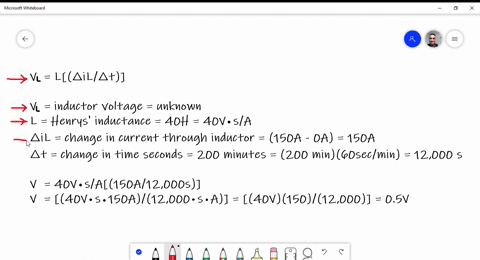

Problem 38

II Magnetic resonance imaging instruments use very large magnets that consist of many turns of superconducting wire. A typical such magnet has an inductance of $40 \mathrm{H.}$ When the magnet is initially powered up, the current through it must be increased slowly so as not to "quench" the wires out of their superconducting state. One such magnet is specified to have its current increased from 0 A to 150 A over 200 min. What con-
stant voltage needs to be applied to yield this rate?

Mark Scythian
Mark Scythian
Numerade Educator
03:32

Problem 39

$\mathrm{A} 20 \mathrm{mH}$ inductor is connected across an $\mathrm{AC}$ generator that produces a peak voltage of $10.0 \mathrm{V}$. What is the peak current through the inductor if the emf frequency is (a) $100 \mathrm{Hz}$ ?
(b) $100 \mathrm{kHz} ?$

Mark Scythian
Mark Scythian
Numerade Educator
01:20

Problem 40

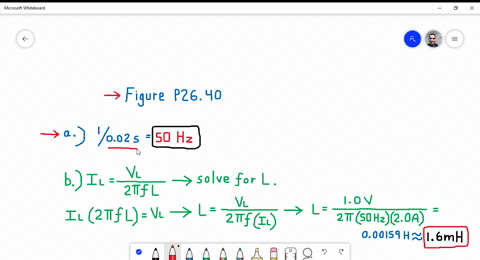

Figure $\mathrm{P} 26.40$ shows voltage and current graphs for an inductor.
What is the frequency of the voltage across the inductor?
b. What is the value of the inductance?

Mark Scythian
Mark Scythian
Numerade Educator
02:08

Problem 41

A $500 \mu \mathrm{H}$ inductor is connected across an $\mathrm{AC}$ generator that produces a peak voltage of $5.0 \mathrm{V}$.
a. At what frequency $f$ is the peak current $50 \mathrm{mA} ?$
b. What is the instantaneous value of the emf at the instant when $i_{\mathrm{L}}=I_{\mathrm{L}} ?$

Mark Scythian
Mark Scythian
Numerade Educator
02:25

Problem 42

An inductor is connected to a $15 \mathrm{kHz}$ oscillator that produces
an rms voltage of $6.0 \mathrm{V}$. The peak current is $65 \mathrm{mA}$. What is the value of the inductance $L ?$

Mark Scythian
Mark Scythian
Numerade Educator
01:45

Problem 43

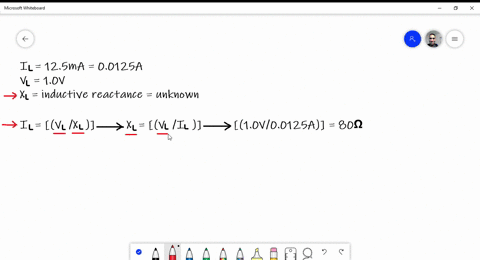

The peak current through an inductor is $12.5 \mathrm{mA}$ when connected to an AC source with a peak voltage of $1.0 \mathrm{V}$. What is the inductive reactance of the inductor?

Mark Scythian
Mark Scythian
Numerade Educator
02:42

Problem 44

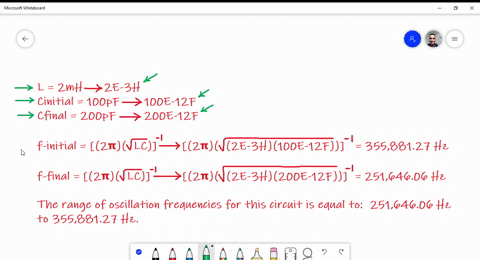

A $2.0 \mathrm{mH}$ inductor is connected in parallel with a variable capacitor. The capacitor can be varied from $100 \mathrm{pF}$ to $200 \mathrm{pF}$. What is the range of oscillation frequencies for this circuit?

Mark Scythian
Mark Scythian
Numerade Educator
05:43

Problem 45

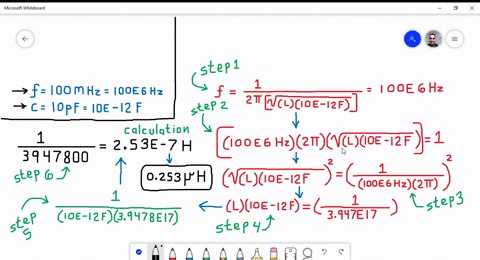

An FM radio station broadcasts at a frequency of $100 \mathrm{MHz}$. What inductance should be paired with a 10 pF capacitor to build a receiver circuit for this station?

Mark Scythian
Mark Scythian
Numerade Educator
02:58

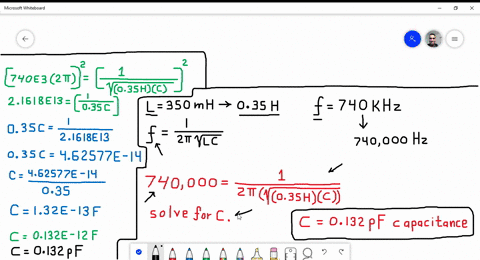

Problem 46

The inductor in the $R L C$ tuning circuit of an $\mathrm{AM}$ radio has a value of $350 \mathrm{mH}$. What should be the value of the variable capacitor in the circuit to tune the radio to $740 \mathrm{kHz} ?$

Mark Scythian
Mark Scythian
Numerade Educator
04:59

Problem 47

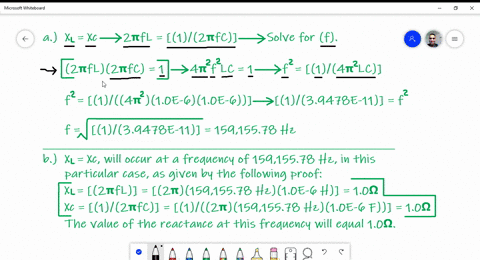

At what frequency $f$ do a $1.0 \mu \mathrm{F}$ capacitor and a $1.0 \mu \mathrm{H}$ inductor have the same reactance? What is the value of the
reactance at this frequency?

Mark Scythian
Mark Scythian
Numerade Educator
01:54

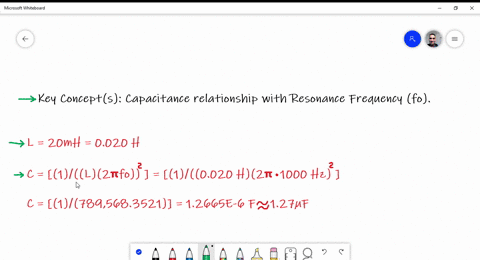

Problem 48

What capacitor in series with a $100 \Omega$ resistor and a $20 \mathrm{mH}$ inductor will give a resonance frequency of $1000 \mathrm{Hz} ?$

Mark Scythian
Mark Scythian
Numerade Educator
01:45

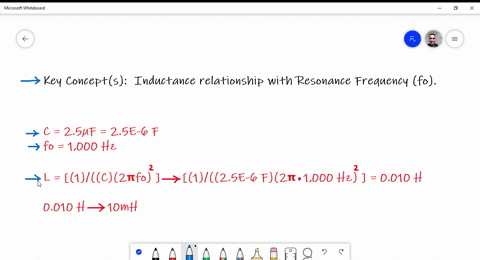

Problem 49

What inductor in series with a $100 \Omega$ resistor and a $2.5 \mu \mathrm{F}$ capacitor will give a resonance frequency of $1000 \mathrm{Hz} ?$

Mark Scythian
Mark Scythian
Numerade Educator
01:50

Problem 50

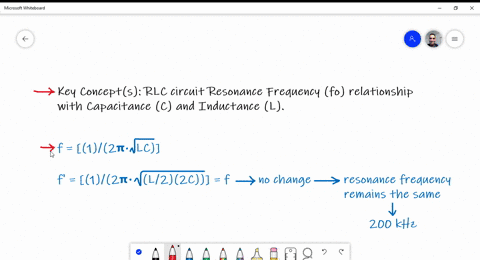

A series $R L C$ circuit has a $200 \mathrm{kHz}$ resonance frequency. What is the resonance frequency if the capacitor value is doubled and the inductor value is halved?

Mark Scythian
Mark Scythian
Numerade Educator
03:25

Problem 51

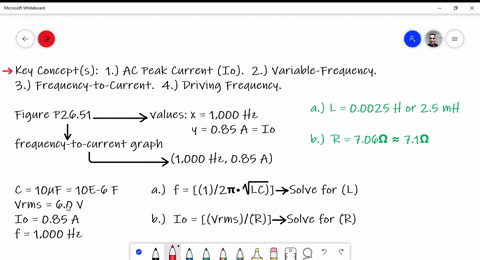

An $R L C$ circuit with a $10 \mu \mathrm{F}$ capacitor is connected to a variable-frequency power supply with an rms output voltage of $6.0 \mathrm{V} .$ The rms current in the circuit as a function of the driving frequency appears as in Figure $\mathrm{P} 26.51 .$ What are the values of the resistor and the inductor?

Mark Scythian
Mark Scythian
Numerade Educator
04:43

Problem 52

In a home stereo system, low sound frequencies are handled by large "woofer" speakers, and high frequencies by smaller "tweeter" speakers. For the best sound reproduction, low-frequency currents from the amplifier should not reach the tweeter. One way to do this is to place a capacitor in series with the $8.0 \Omega$ resistance of the tweeter; one then has an $R L C$ circuit with no inductor $L$ (that is, an $R L C$ circuit with
$L=0$ ). What value of $C$ should be chosen so that the current through the tweeter at $200 \mathrm{Hz}$ is half its value at very high frequencies?

Sheh Lit Chang
Sheh Lit Chang
University of Washington
02:23

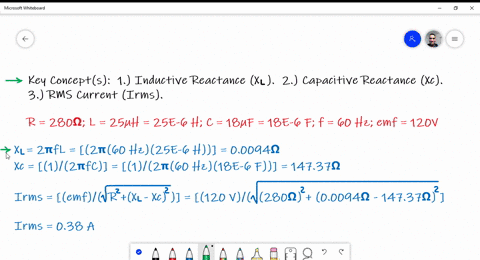

Problem 53

A series $R L C$ circuit consists of a $280 \Omega$ resistor, a $25 \mu \mathrm{H}$ inductor, and an $18 \mu \mathrm{F}$ capacitor. What is the rms current if the emf is supplied by a standard $120 \mathrm{V}, 60 \mathrm{Hz}$ wall outlet?

Mark Scythian
Mark Scythian
Numerade Educator
02:25

Problem 54

An $R L C$ circuit has a $24 \Omega$ resistor and a $58 \mu \mathrm{H}$ inductor; when connected to an AC source, its resonance frequency is $320 \mathrm{kHz}$. At what frequency, greater than the resonance frequency, will the current in the circuit be one-half its value at resonance?

Mark Scythian
Mark Scythian
Numerade Educator
02:18

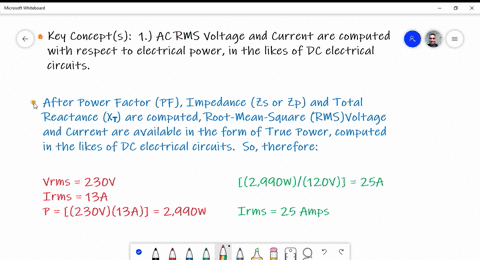

Problem 55

Electric outlets in England are 230 V. Alice brings her electric kettle from England, where it draws $13 \mathrm{A},$ and wants to use it in the United States. She uses a step-up transformer to increase the $120 \mathrm{V}$ outlet voltage to $230 \mathrm{V},$ then plugs her kettle into the secondary. What is the current in the primary in the few seconds before the 15 A circuit breaker trips?

Mark Scythian
Mark Scythian
Numerade Educator
02:15

Problem 56

The charger for your cell phone contains a small transformer. While charging, it provides $5.0 \mathrm{W}$ to your phone at $5.0 \mathrm{V}$. Assuming an ideal transformer, how much current does this transformer draw from the $120 \mathrm{V}$ wall socket?

Mark Scythian
Mark Scythian
Numerade Educator
04:39

Problem 57

The girl in Figure 26.12 of the chapter has her hand on the sphere of a Van de Graaff generator that is at a potential of $400,000 \mathrm{V}$. She is standing on an insulating platform, so no current flows through her. But what happens if she touches something that is grounded? Is she still safe? Figure $P 26.57$ shows the equivalent circuit. $C_{\mathrm{VDG}}=20 \mathrm{pF}$ represents the capacitance of the Van de Graaff sphere, $C_{\text {girl }}=100 \mathrm{pF}$ is the capacitance of the girl's body, and $R=5 \mathrm{k} \Omega$ is the resistance of her body, from one hand to the other. The switch is closed when she touches ground.
What is the initial current at the instant the switch is closed?

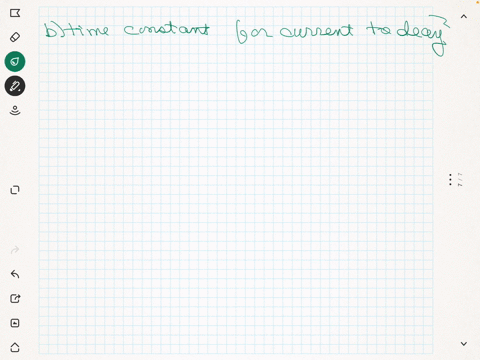

b. What is the time constant for the current to decay?
c. Occupational safety experts have found that a shock is safe if the product of the voltage, the current, and the time the current is delivered is less than $13.5 \mathrm{V} \cdot \mathrm{A} \cdot \mathrm{s}=13.5 \mathrm{J}$ (see Problem 26.28). Estimate this product. Is this shock safe?

Susan Hallstrom
Susan Hallstrom
Numerade Educator
04:01

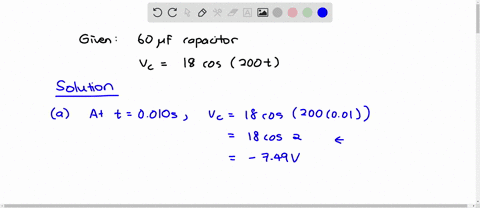

Problem 58

$\|$ The voltage across a $60 \mu \mathrm{F}$ capacitor is described by the equation $v_{\mathrm{C}}=(18 \mathrm{V}) \cos (200 t),$ where $t$ is in seconds.
a. What is the voltage across the capacitor at $t=0.010 \mathrm{s} ?$
b. What is the capacitive reactance?
c. What is the peak current?

Sheh Lit Chang
Sheh Lit Chang
University of Washington
03:54

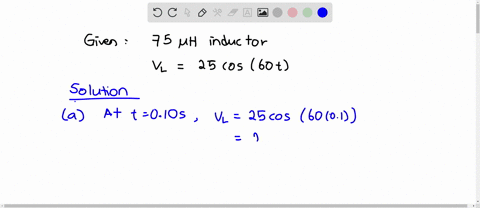

Problem 59

The voltage across a $75 \mu \mathrm{H}$ inductor is described by the equation $v_{\mathrm{L}}=(25 \mathrm{V}) \cos (60 t),$ where $t$ is in seconds.
a. What is the voltage across the inductor at $t=0.10 \mathrm{s} ?$
b. What is the inductive reactance?
c. What is the peak current?

Sheh Lit Chang
Sheh Lit Chang
University of Washington
03:54

Problem 60

An electronics hobbyist is building a radio set to receive the AM band, with frequencies from $520 \mathrm{kHz}$ to $1700 \mathrm{kHz}$. The antenna, which also serves as the inductor in an $L C$ circuit, has an inductance of $230 \mu \mathrm{H.}$ She needs to add a variable capacitor whose capacitance she can adjust to tune the radio. What is the minimum capacitance the capacitor must have? The maximum value?

Sheh Lit Chang
Sheh Lit Chang
University of Washington
02:36

Problem 61

For the circuit of Figure $\mathrm{P} 26.61$,
What is the resonance frequency?
b. At resonance, what is the peak current through the circuit?

Sheh Lit Chang
Sheh Lit Chang
University of Washington
02:30

Problem 62

For the circuit of Figure $\mathrm{P} 26.62$,
a. What is the resonance frequency?
b. At resonance, what is the peak current through the circuit?

Sheh Lit Chang
Sheh Lit Chang
University of Washington
03:16

Problem 63

An $R L C$ circuit consists of a $48 \Omega$ resistor, a $200 \mu \mathrm{F}$ capacitor, and an inductor. The rms current is $2.5 \mathrm{A}$ when the circuit is connected to a $120 \mathrm{V}, 60 \mathrm{Hz}$ outlet. What is the inductance?

Sheh Lit Chang
Sheh Lit Chang
University of Washington
02:45

Problem 64

II If the frequency is doubled to $80 \mathrm{kHz}$ and the current is kept the same, what will be the peak out-of-phase voltage?
A. $0.32 \mathrm{V}$
B. $0.16 \mathrm{V}$
C. $0.080 \mathrm{V}$
D. $0.040 \mathrm{V}$

Sheh Lit Chang
Sheh Lit Chang
University of Washington
02:27

Problem 65

What is the approximate capacitance of the cell membrane?
A. $20 \times 10^{-11} \mathrm{F}$
B. $10 \times 10^{-11} \mathrm{F}$
C. $5.0 \times 10^{-11} \mathrm{F}$
D. $2.5 \times 10^{-11} \mathrm{F}$

Sheh Lit Chang
Sheh Lit Chang
University of Washington
02:22

Problem 66

If the capacitance of a cell membrane is measured to be $6.0 \times 10^{-11} \mathrm{F},$ what is the area?
A. $6.0 \times 10^{-13} \mathrm{m}^{2}$
B. $6.0 \times 10^{-11} \mathrm{m}^{2}$
C. $6.0 \times 10^{-9} \mathrm{m}^{2}$
D. $6.0 \times 10^{-7} \mathrm{m}^{2}$

Sheh Lit Chang
Sheh Lit Chang
University of Washington
02:55

Problem 67

If the investigator applies a $1.0 \mu$ A peak current at $40 \mathrm{kHz}$ to a cell with twice the membrane area of the cell noted in the passage, what will be the peak out-of-phase voltage?
A. $0.32 \mathrm{V}$
B. $0.16 \mathrm{V}$
C. $0.080 \mathrm{V}$
D. $0.040 \mathrm{V}$

Sheh Lit Chang
Sheh Lit Chang
University of Washington
01:42

Problem 68

The $12 \mathrm{V}$ rating of the bulb refers to the rms voltage. What is the peak voltage across the bulb?
A. $8.5 \mathrm{V}$
B. $12 \mathrm{V}$
C. $17 \mathrm{V}$
D. $24 \mathrm{V}$

Sheh Lit Chang
Sheh Lit Chang
University of Washington
02:09

Problem 69

I Suppose the transformer in the base of the lamp has 500 turns of wire on its primary coil. How many turns are on the secondary coil?
A. 50
B. 160
C. 500
D. 5000

Sheh Lit Chang
Sheh Lit Chang
University of Washington
02:32

Problem 70

How much current is drawn by the lamp at the outlet? That is, what is the rms current in the primary?
A. $0.42 \mathrm{A}$
B. $1.3 \mathrm{A}$
C. $4.2 \mathrm{A}$
D. $13 \mathrm{A}$

Sheh Lit Chang
Sheh Lit Chang
University of Washington
02:40

Problem 71

What will be the voltage across the bulb if the lamp's power cord is accidentally plugged into a $240 \mathrm{V}, 60 \mathrm{Hz}$ outlet?
A. $2 \mathrm{V}$
B. $24 \mathrm{V}$
C. $36 \mathrm{V}$
D. $48 \mathrm{V}$

Sheh Lit Chang
Sheh Lit Chang
University of Washington
