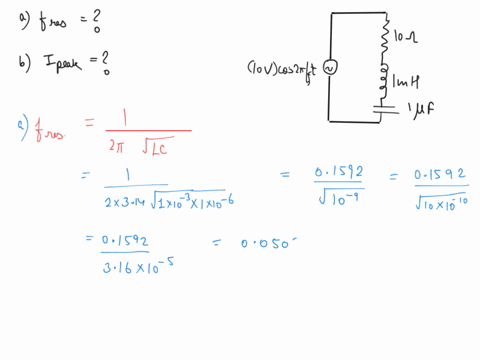

For the circuit of Figure P 26.62, a. What is the resonance frequency? b. At resonance, what is

step 1 In this question, we are given this RLC circuit. So you have a resistor, you have an inductor, w

For the circuit of Figure P 26.62, a. What is the resonance...

Key Concepts

Resonance in RLC Circuits

Resonance in RLC circuits occurs when the inductive reactance and capacitive reactance are equal in magnitude but opposite in phase, resulting in their cancellation. This condition minimizes the net reactive impedance in a series circuit (or maximizes impedance in a parallel circuit) and leads to a purely resistive circuit at the resonance frequency. It is a fundamental concept in alternating current (AC) circuit analysis, influencing the behavior of filters, oscillators, and tuned circuits.

Resonant Frequency Calculation

The resonant frequency of an RLC circuit is determined by the values of the inductance and capacitance, and is given by the formula f? = 1/(2??(LC)). At this frequency, the energy exchange between the magnetic field in the inductor and the electric field in the capacitor is at its maximum efficiency, making it a critical parameter for designing circuits that require sharp frequency selectivity.

Peak Current at Resonance

At resonance in a series RLC circuit, the impedance is minimized to just the resistance of the circuit since the reactive components cancel out. This allows the maximum or 'peak' current to flow through the circuit, which is determined by Ohm’s law as the ratio of the peak voltage applied to the circuit over the resistance. This concept is crucial when assessing the performance and safety of AC circuits under resonant conditions.
