College Physics

Paul Peter Urone, Roger Hinrichs

Chapter 9

Statics and Torque - all with Video Answers

Educators

Chapter Questions

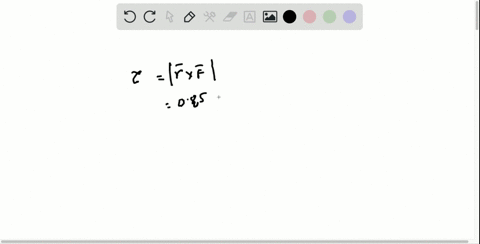

Problem 1

(a) When opening a door, you push on it perpendicularly with a force of $55.0 \mathrm{N}$ at a distance of $0.850 \mathrm{m}$ from the hinges. What torque are you exerting relative to the hinges?
(b) Does it matter if you push at the same height as the hinges?

Mayukh Banik

Mayukh Banik

Numerade Educator

Problem 2

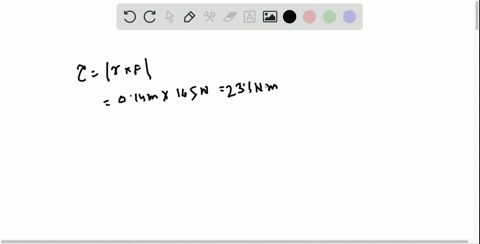

When tightening a bolt, you push perpendicularly on a wrench with a force of $165 \mathrm{N}$ at a distance of $0.140 \mathrm{m}$ from the center of the bolt. (a) How much torque are you exerting in newton $\times$ meters (relative to the center of the bolt)? (b) Convert this torque to footpounds.

Mayukh Banik

Numerade Educator

Problem 3

Two children push on opposite sides of a door during play. Both push horizontally and perpendicular to the door. One child pushes with a force of $17.5 \mathrm{N}$ at a distance of $0.600 \mathrm{m}$ from the hinges, and the second child pushes at a distance of 0.450 m. What force must the second child exert to keep the door from moving? Assume friction is negligible.

Mayukh Banik

Numerade Educator

Problem 4

Use the second condition for equilibrium (net $\tau=0$ ) to calculate $F_{\mathrm{p}}$ in Example $9.1,$ employing any data given or solved for in part (a) of the example.

Averell Hause

Carnegie Mellon University

Problem 5

Repeat the seesaw problem in Example 9.1 with the center of mass of the seesaw 0.160 m to the left of the pivot (on the side of the lighter child) and assuming a mass of 12.0 kg for the seesaw. The other data given in the example remain unchanged. Explicitly show how you follow the steps in the Problem-Solving Strategy for static equilibrium.

Averell Hause

Carnegie Mellon University

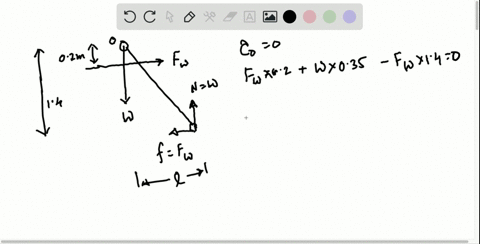

Problem 6

Suppose a horse leans against a wall as in Figure 9.30 . Calculate the force exerted on the wall assuming that force is horizontal while using the data in the schematic representation of the situation. Note that the force exerted on the wall is equal in magnitude and opposite in direction to the force exerted on the horse, keeping it in equilibrium. The total mass of the horse and rider is $500 \mathrm{kg}$. Take the data to be accurate to three digits.

Mayukh Banik

Numerade Educator

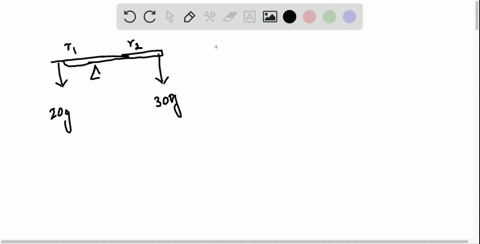

Problem 7

Two children of mass $20.0 \mathrm{kg}$ and $30.0 \mathrm{kg}$ sit balanced on a seesaw with the pivot point located at the center of the seesaw. If the children are separated by a distance of $3.00 \mathrm{m}$ at what distance from the pivot point is the small child sitting in order to maintain the balance?

Mayukh Banik

Numerade Educator

Problem 8

(a) Calculate the magnitude and direction of the force on each foot of the horse in Figure 9.30 (two are on the ground), assuming the center of mass of the horse is midway between the feet. The total mass of the horse and rider is 500kg. (b) What is the minimum coefficient of friction between the hooves and ground? Note that the force exerted by the wall is horizontal.

Mayukh Banik

Numerade Educator

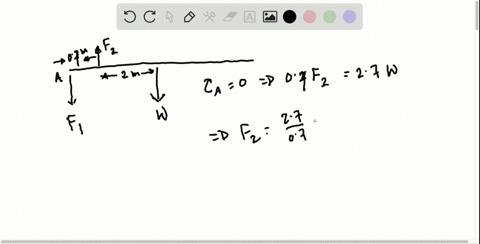

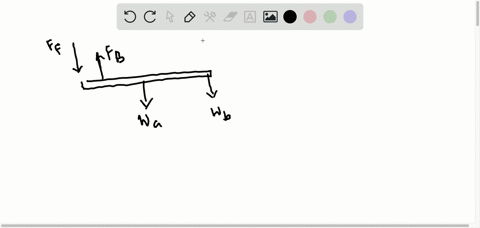

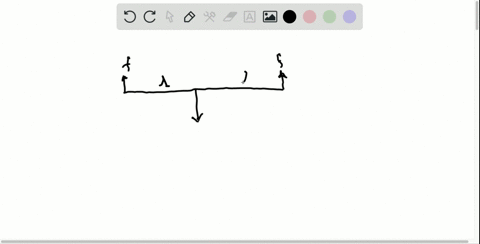

Problem 9

A person carries a plank of wood 2.00 $\mathrm{m}$ long with one hand pushing down on it at one end with a force $\mathrm{F}_{1}$ and the other hand holding it up at. 500 m from the end of the plank with force $F_{2}$. If the plank has a mass of $20.0 \mathrm{kg}$ and its center of gravity is at the middle of the plank, what are the magnitudes of the forces $F_{1}$ and $F_{2} ?$

Mayukh Banik

Numerade Educator

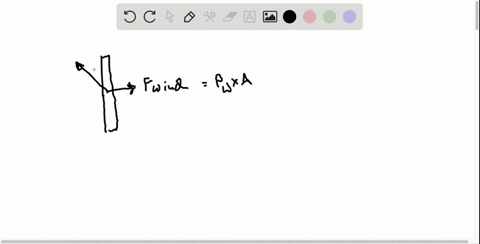

Problem 10

A 17.0-m-high and 11.0-m-long wall under construction and its bracing are shown in Figure 9.31 . The wall is in stable equilibrium without the bracing but can pivot at its base. Calculate the force exerted by each of the 10 braces if a strong wind exerts a horizontal force of 650 N on each square meter of the wall. Assume that the net force from the wind acts at a height halfway up the wall and that all braces exert equal forces parallel to their lengths. Neglect the thickness of the wall.

Mayukh Banik

Numerade Educator

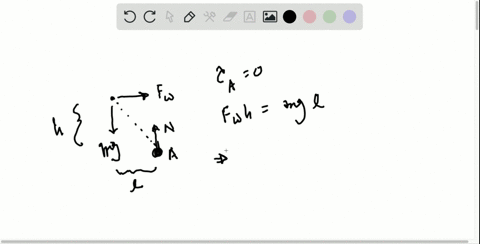

Problem 11

(a) What force must be exerted by the wind to support a 2.50-kg chicken in the position shown in Figure 9.32? (b) What is the ratio of this force to the chicken's weight? (c) Does this support the contention that the chicken has a relatively stable construction?

Mayukh Banik

Numerade Educator

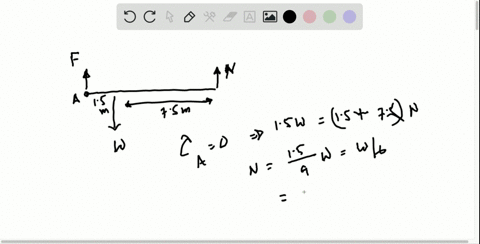

Problem 12

Suppose the weight of the drawbridge in Figure 9.33 is supported entirely by its hinges and the opposite shore, so that its cables are slack. The mass of the bridge is $2500 \mathrm{kg}$.
(a) What fraction of the weight is supported by the opposite shore if the point of support is directly beneath the cable attachments? (b) What is the direction and magnitude of the force the hinges exert on the bridge under these circumstances?

Mayukh Banik

Numerade Educator

Problem 13

Suppose a $900-\mathrm{kg}$ car is on the bridge in Figure 9.33 with its center of mass halfway between the hinges and the cable attachments. (The bridge is supported by the cables and hinges only.) (a) Find the force in the cables. (b) Find the direction and magnitude of the force exerted by the hinges on the bridge.

Mayukh Banik

Numerade Educator

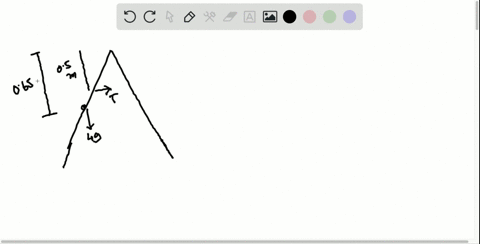

Problem 14

A sandwich board advertising sign is constructed as shown in Figure $9.34 .$ The sign's mass is 8.00 kg. (a) Calculate the tension in the chain assuming no friction between the legs and the sidewalk. (b) What force is exerted by each side on the hinge?

Mayukh Banik

Numerade Educator

Problem 15

(a) What minimum coefficient of friction is needed between the legs and the ground to keep the sign in Figure 9.34 in the position shown if the chain breaks? (b) What force is exerted by each side on the hinge?

Mayukh Banik

Numerade Educator

Problem 16

A gymnast is attempting to perform splits. From the information given in Figure $9.35,$ calculate the magnitude and direction of the force exerted on each foot by the floor.

Mayukh Banik

Numerade Educator

Problem 17

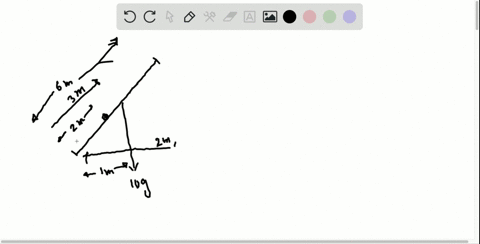

To get up on the roof, a person (mass $70.0 \mathrm{kg}$ ) places a 6.00-m aluminum ladder (mass 10.0 kg) against the house on a concrete pad with the base of the ladder $2.00 \mathrm{m}$ from the house. The ladder rests against a plastic rain gutter, which we can assume to be frictionless. The center of mass of the ladder is $2 \mathrm{m}$ from the bottom. The person is standing $3 \mathrm{m}$ from the bottom. What are the magnitudes of the forces on the ladder at the top and bottom?

Mayukh Banik

Numerade Educator

Problem 18

In Figure $9.20,$ the cg of the pole held by the pole vaulter is $2.00 \mathrm{m}$ from the left hand, and the hands are $0.700 \mathrm{m}$ apart. Calculate the force exerted by (a) his right hand and (b) his left hand. (c) If each hand supports half the weight of the pole in Figure $9.18,$ show that the second condition for equilibrium (net $\tau=0$ ) is satisfied for a pivot other than the one located at the center of gravity of the pole. Explicitly show how you follow the steps in the Problem-Solving Strategy for static equilibrium described above.

Mayukh Banik

Numerade Educator

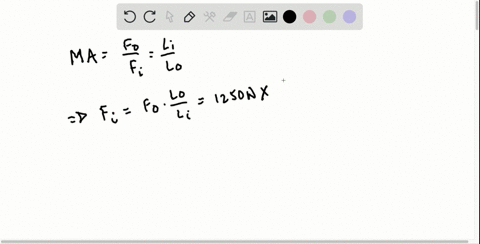

Problem 19

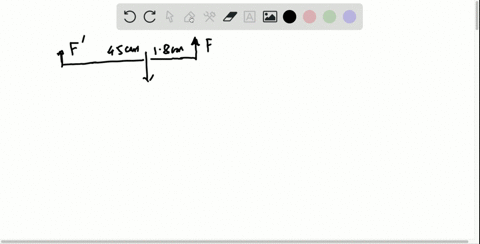

What is the mechanical advantage of a nail puller- -similar to the one shown in Figure 9.22 - where you exert a force
$45 \mathrm{cm}$ from the pivot and the nail is $1.8 \mathrm{cm}$ on the other side? What minimum force must you exert to apply a force of 1250 N to the nail?

Mayukh Banik

Numerade Educator

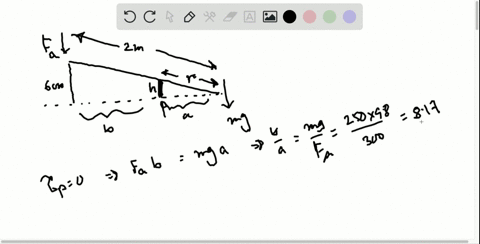

Problem 20

Suppose you needed to raise a 250-kg mower a distance of $6.0 \mathrm{cm}$ above the ground to change a tire. If you had a 2.0-m long lever, where would you place the fulcrum if your force was limited to $300 \mathrm{N}$ ?

Mayukh Banik

Numerade Educator

Problem 21

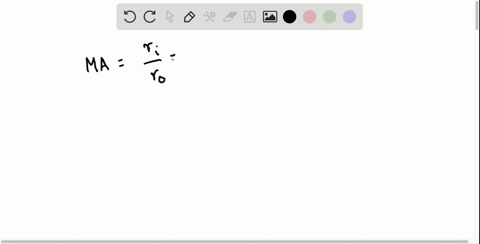

a) What is the mechanical advantage of a wheelbarrow, such as the one in Figure 9.23 , if the center of gravity of the wheelbarrow and its load has a perpendicular lever arm of $5.50 \mathrm{cm},$ while the hands have a perpendicular lever arm of 1.02 $\mathrm{m}$ ? (b) What upward force should you exert to support the wheelbarrow and its load if their combined mass is 55.0 kg? (c) What force does the wheel exert on the ground?

Mayukh Banik

Numerade Educator

Problem 22

A typical car has an axle with $1.10 \mathrm{cm}$ radius driving a tire with a radius of $27.5 \mathrm{cm} .$ What is its mechanical advantage assuming the very simplified model in Figure $9.24(\mathrm{b}) ?$

Mayukh Banik

Numerade Educator

Problem 23

What force does the nail puller in Exercise 9.19 exert on the supporting surface? The nail puller has a mass of $2.10 \mathrm{kg}$.

Mayukh Banik

Numerade Educator

Problem 24

If you used an ideal pulley of the type shown in Figure $9.25(\text { a) to support a car engine of mass } 115 \mathrm{kg},$ (a) What would be the tension in the rope? (b) What force must the ceiling supply, assuming you pull straight down on the rope? Neglect the pulley system's mass.

Mayukh Banik

Numerade Educator

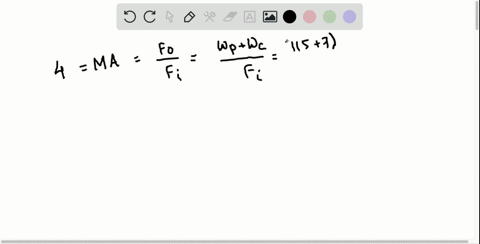

Problem 25

Repeat Exercise 9.24 for the pulley shown in Figure $9.25(\mathrm{c}),$ assuming you pull straight up on the rope. The pulley system's mass is $7.00 \mathrm{kg}$

Mayukh Banik

Numerade Educator

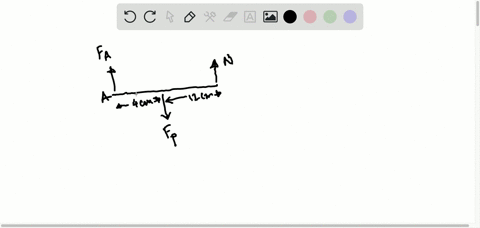

Problem 26

Verify that the force in the elbow joint in Example 9.4 is $407 \mathrm{N},$ as stated in the text.

Mayukh Banik

Numerade Educator

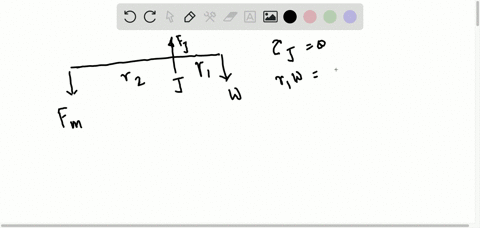

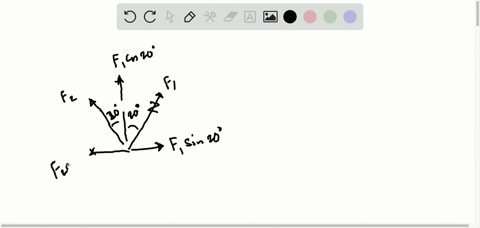

Problem 27

Two muscles in the back of the leg pull on the Achilles tendon as shown in Figure $9.36 .$ What total force do they exert?

Mayukh Banik

Numerade Educator

Problem 28

The upper leg muscle (quadriceps) exerts a force of 1250 N, which is carried by a tendon over the kneecap (the patella) at the angles shown in Figure 9.37 . Find the direction and magnitude of the force exerted by the kneecap on the upper leg bone (the femur).

Mayukh Banik

Numerade Educator

Problem 29

A device for exercising the upper leg muscle is shown in Figure $9.38,$ together with a schematic representation of an equivalent lever system. Calculate the force exerted by the upper leg muscle to lift the mass at a constant speed. Explicitly show how you follow the steps in the Problem Solving Strategy for static equilibrium in Applications of Statistics, Including Problem-Solving Strategies.

Mayukh Banik

Numerade Educator

Problem 30

A person working at a drafting board may hold her head as shown in Figure $9.39,$ requiring muscle action to support the head. The three major acting forces are shown. Calculate the direction and magnitude of the force supplied by the upper vertebrae $\mathbf{F}_{\mathbf{V}}$ to hold the head stationary, assuming that this force acts along a line through the center of mass as do the weight and muscle force.

Mayukh Banik

Numerade Educator

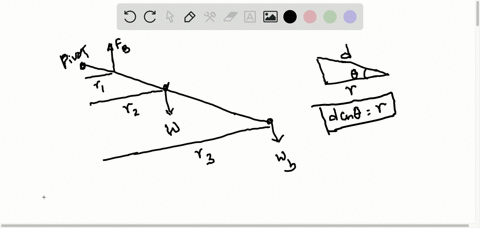

Problem 31

We analyzed the biceps muscle example with the angle between forearm and upper arm set at $90^{\circ} .$ Using the same numbers as in Example $9.4,$ find the force exerted by the biceps muscle when the angle is $120^{\circ}$ and the forearm is in a downward position.

Mayukh Banik

Numerade Educator

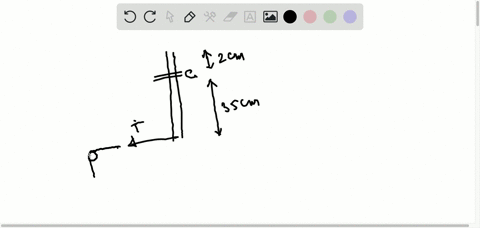

Problem 32

Even when the head is held erect, as in Figure $9.40,$ its center of mass is not directly over the principal point of support (the atlanto-occipital joint). The muscles at the back of the neck should therefore exert a force to keep the head erect. That is why your head falls forward when you fall asleep in the class. (a) Calculate the force exerted by these muscles using the information in the figure. (b) What is the force exerted by the pivot on the head?

Mayukh Banik

Numerade Educator

Problem 33

A 75-kg man stands on his toes by exerting an upward force through the Achilles tendon, as in Figure $9.41 .$ (a) What is the force in the Achilles tendon if he stands on one foot? (b) Calculate the force at the pivot of the simplified lever system shown-that force is representative of forces in the ankle joint.

Mayukh Banik

Numerade Educator

Problem 34

A father lifts his child as shown in Figure $9.42 .$ What force should the upper leg muscle exert to lift the child at a constant speed?

Mayukh Banik

Numerade Educator

Problem 35

Unlike most of the other muscles in our bodies, the masseter muscle in the jaw, as illustrated in Figure $9.43,$ is attached relatively far from the joint, enabling large forces to be exerted by the back teeth. (a) Using the information in the figure, calculate the force exerted by the lower teeth on the bullet. (b) Calculate the force on the joint.

Mayukh Banik

Numerade Educator

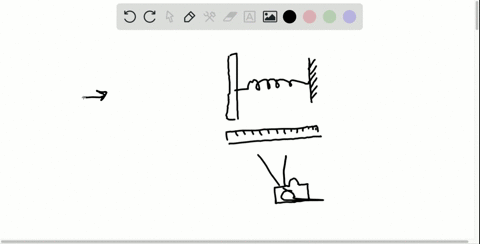

Problem 36

Suppose we replace the 4.0 -kg book in Exercise 9.31 of the biceps muscle with an elastic exercise rope that obeys Hooke's Law. Assume its force constant $k=600 \mathrm{N} / \mathrm{m}$. (a) How much is the rope stretched (past equilibrium) to provide the same force $F_{\mathrm{B}}$ as in this example? Assume the rope is held in the hand at the same location as the book. (b) What force is on the biceps muscle if the exercise rope is pulled straight up so that the forearm makes an angle of $25^{\circ}$ with the horizontal? Assume the biceps muscle is still perpendicular to the forearm.

Averell Hause

Carnegie Mellon University

Problem 37

(a) What force should the woman in Figure 9.44 exert on the floor with each hand to do a push-up? Assume that she moves up at a constant speed. (b) The triceps muscle at the back of her upper arm has an effective lever arm of $1.75 \mathrm{cm}$ and she exerts force on the floor at a horizontal distance of $20.0 \mathrm{cm}$ from the elbow joint. Calculate the magnitude of the force in each triceps muscle, and compare it to her weight. (c) How much work does she do if her center of mass rises 0.240 m? (d) What is her useful power output if she does 25 pushups in one minute?

Mayukh Banik

Numerade Educator

Problem 38

You have just planted a sturdy 2-m-tall palm tree in your front lawn for your mother's birthday. Your brother kicks a 500 g ball, which hits the top of the tree at a speed of $5 \mathrm{m} / \mathrm{s}$ and stays in contact with it for 10 ms. The ball falls to the ground near the base of the tree and the recoil of the tree is minimal.
(a) What is the force on the tree? (b) The length of the sturdy section of the root is only $20 \mathrm{cm} .$ Furthermore, the soil around the roots is loose and we can assume that an effective force is applied at the tip of the $20 \mathrm{cm}$ length. What is the effective force exerted by the end of the tip of the root to keep the tree from toppling? Assume the tree will be uprooted rather than bend. (c) What could you have done to ensure that the tree

Mayukh Banik

Numerade Educator

Problem 39

Suppose two children are using a uniform seesaw that is 3.00 m long and has its center of mass over the pivot. The first child has a mass of $30.0 \mathrm{kg}$ and sits $1.40 \mathrm{m}$ from the pivot. (a) Calculate where the second $18.0 \mathrm{kg}$ child must sit to balance the seesaw. (b) What is unreasonable about the result? (c) Which premise is unreasonable, or which premises are inconsistent?

Mayukh Banik

Numerade Educator

Problem 40

Suppose two children are using a uniform seesaw that is 3.00 m long and has its center of mass over the pivot. The first child has a mass of $30.0 \mathrm{kg}$ and sits $1.40 \mathrm{m}$ from the pivot. (a) Calculate where the second $18.0 \mathrm{kg}$ child must sit to balance the seesaw. (b) What is unreasonable about the result? (c) Which premise is unreasonable, or which premises are inconsistent?

Mayukh Banik

Numerade Educator
