If you used an ideal pulley of the type shown in Figure 9.25( a) to support a car engine of mass

step 1 Looking at the diagram, we can find that mechanical advantage equals two because there are two c

If you used an ideal pulley of the type shown in Figure...

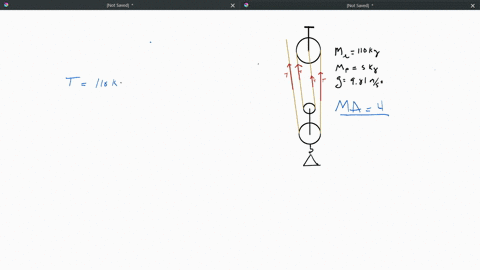

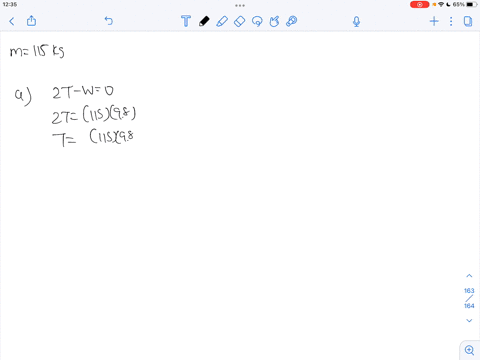

If you used an ideal pulley of the type shown in Figure $9.25(\text { a) to support a car engine of mass } 115 \mathrm{kg},$ (a) What would be the tension in the rope? (b) What force must the ceiling supply, assuming you pull straight down on the rope? Neglect the pulley system's mass.

Key Concepts

Force Analysis in Pulley Systems

Force analysis in pulley systems involves breaking down the system into individual components and applying free-body diagrams to visualize the forces at play. This process typically uses Newton's laws, particularly in static scenarios, to relate the tension in the rope to the support forces provided by structures like ceilings or walls, ensuring that all forces balance properly.

Ideal Pulley

An ideal pulley is assumed to be frictionless and massless, which means it does not add any extra force or resistance to the system. This assumption simplifies analysis because the tension in the rope remains constant across all segments that pass over the pulley, allowing for straightforward calculations of forces acting on connected objects.

Uniform Tension

Uniform tension refers to the condition in an ideal pulley system where the tension in the rope is the same throughout its length. This concept is essential for solving mechanical problems involving ropes and pulleys since it guarantees that forces are evenly distributed, simplifying the analysis of how forces such as weight and applied loads balance each other.

Static Equilibrium

Static equilibrium occurs when an object is at rest or moving with constant velocity, meaning all the forces acting on the object balance each other, resulting in no net acceleration. This principle is critical when analyzing systems like pulley arrangements because it allows the application of Newton's second law to set up equations where the sum of forces equals zero.
