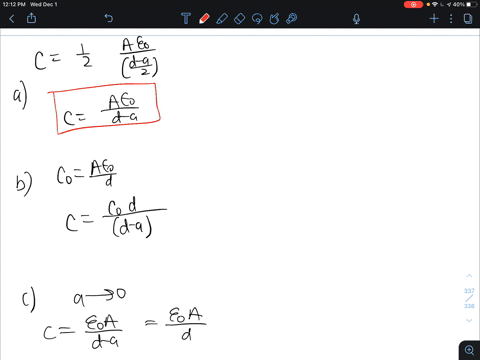

24.66. An air capacitor is made by using two flat plates, each with area $A$ , separated by a distance $d$ . Then a metal slab having thickness a (less than $d$ ) and the same shape and size as the plates is inserted between them, parallel to the plates and not touching either plate (Fig. 24.36$)$ . (a) What is the capacitance of this arrangement? (b) Express the capacitance as a multiple of the capacitance $C_{0}$ when the metal slab is not present.(c) Discuss what happens to the capacitance in the limits $a \rightarrow 0$ and $a \rightarrow d$ .

24.66. An air capacitor is made by
using two flat plates, each with area $A$ ,
separated by a distance $d$ . Then a
metal slab having thickness a (less
than $d$ ) and the same shape and size as
the plates is inserted between them,
parallel to the plates and not touching
either plate (Fig. 24.36$)$ . (a) What is
the capacitance of this arrangement?
(b) Express the capacitance as a multiple of the capacitance $C_{0}$
when the metal slab is not present.(c) Discuss what happens to the
capacitance in the limits $a \rightarrow 0$ and $a \rightarrow d$ .

Key Concepts

Limiting Behavior Analysis

This concept involves studying the behavior of a system as a parameter approaches an extreme value. In capacitor problems, it is common to investigate limits such as when the inserted metal slab's thickness approaches zero (recovering the original parallel-plate capacitor) or approaches the full separation distance (which theoretically leads to an infinite capacitance).

Series Combination of Capacitors

When a capacitor is divided into sections by the insertion of a conductor, each section behaves like an individual capacitor connected in series with the others. The total capacitance is then obtained from the reciprocal of the sum of the reciprocals of the individual capacitances. This concept is essential for combining the effects of multiple gaps in modified capacitor configurations.

Parallel-Plate Capacitor Model

This concept refers to a capacitor consisting of two flat, conductive plates separated by a uniform distance. Its capacitance is determined by the permittivity of the medium between the plates, the plate area, and the separation distance, typically expressed as C = ??A/d for an air or vacuum-filled capacitor.

Capacitor Modification via Metal Insertion

Inserting a metal slab into a parallel-plate capacitor alters the electric field distribution and the effective separation distance through which the voltage is dropped. The metal, being an equipotential conductor, effectively partitions the original capacitor into two distinct gaps, each behaving as a separate capacitor, which must be analyzed to determine the overall capacitance.
