A 1.00 -mol sample of a monatomic ideal gas is taken through...

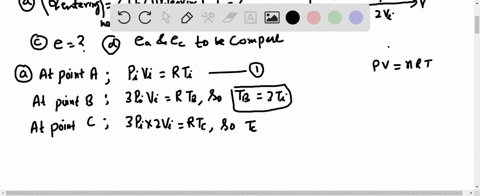

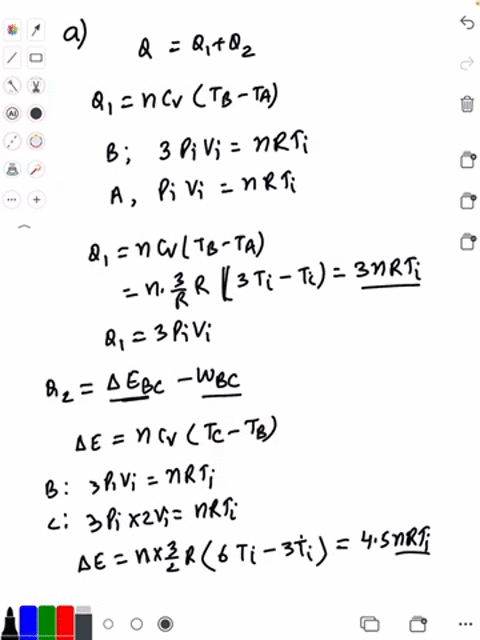

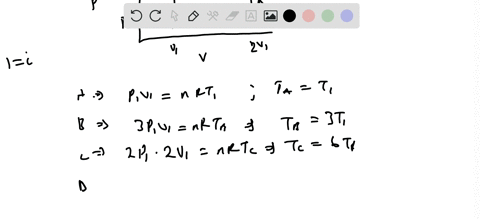

A 1.00 -mol sample of a monatomic ideal gas is taken through the cycle shown in Figure $\mathrm{P} 18.58$ At point $A,$ the pressure, volume, and temperature $\operatorname{are} P_{i}, V_{i},$ and $T_{i},$ respectively. In terms of $R$ and $T_{i},$ find $(\mathrm{a})$ the total en $-$ ergy entering the system by heat per cycle, (b) the total energy leaving the system by heat per cycle, and (c) the efficiency of an engine operating in this cycle. (d) Explain how the efficiency compares with that of an engine operating in a Carnot cycle between the same temperature extremes.

A 1.00 -mol sample of a monatomic ideal gas is taken through the cycle shown in Figure $\mathrm{P} 18.58$ At point $A,$ the pressure, volume, and temperature $\operatorname{are} P_{i}, V_{i},$ and $T_{i},$ respectively. In terms of $R$ and $T_{i},$ find $(\mathrm{a})$ the total en $-$ ergy entering the system by heat per cycle, (b) the total energy leaving the system by heat per cycle, and (c) the efficiency of an engine operating in this cycle.
(d) Explain how the efficiency compares with that of an engine operating in a Carnot cycle between the same temperature extremes.

Key Concepts

Carnot Cycle and Efficiency Limit

The Carnot cycle is an idealized reversible cycle that serves as the benchmark for the maximum possible efficiency of a heat engine operating between two given temperatures. Its efficiency depends only on the temperatures of the hot and cold reservoirs, setting an upper limit that real cycles cannot surpass.

Efficiency of Heat Engines

The efficiency of a heat engine is defined as the ratio of the net work output to the heat input. It quantifies how effectively a cycle converts heat into work. Evaluating efficiency involves considering both the energy added to and removed from the system during the cycle.

Thermodynamic Cycles

A thermodynamic cycle consists of a series of processes that return a system to its original state. In such cycles, while internal energy changes over individual processes, the overall change after one complete cycle is zero. This allows the net work done by the system to be directly related to the net heat transfer.

Monatomic Ideal Gas Internal Energy

For a monatomic ideal gas, the internal energy is given by U = (3/2)nRT, which depends only on temperature. This concept simplifies the analysis of thermodynamic processes by directly linking temperature changes to changes in the system's internal energy.

Ideal Gas Law

The ideal gas law, expressed as PV = nRT, provides a fundamental relationship between the pressure, volume, and temperature of an ideal gas. It is essential for analyzing processes in thermodynamic cycles, especially when determining the state changes of gases during expansion and compression.

First Law of Thermodynamics

This law states that energy cannot be created or destroyed but only transformed or transferred. In thermodynamics, it is applied to relate the change in internal energy of a system to the heat added to the system and the work done by the system, forming the basis for energy analysis in any thermodynamic cycle.
