A 25,000-kg rocket blasts off vertically from the earth's...

A $25,000-\mathrm{kg}$ rocket blasts off vertically from the earth's sur- face with a constant acceleration. During the motion considered in the problem, assume that $g$ remains constant (see Chapter 12 ) Inside the rocket, a $15.0-\mathrm{N}$ instrument hangs from a wire that can support a maximum tension of 35.0 $\mathrm{N}$ . (a) Find the minimum time for this rocket to reach the sound barrier $(330 \mathrm{m} / \mathrm{s})$ without breaking the inside wire and the maximum vertical thrust of the rocket engines under these conditions. (b) How far is the rocket above the earth's surface when it breaks the sound barrier?

Key Concepts

Maximum Tension and Structural Limits

Understanding maximum tension involves recognizing that supporting components have a stress limit beyond which failure occurs. In dynamics problems, this concept is crucial to ensure that the forces induced by acceleration do not exceed the material or design limitations of the system.

Constant Acceleration Kinematics

This concept involves using the equations of motion for objects traveling with a constant acceleration. These equations relate velocity, time, and displacement, allowing one to calculate the time needed to reach a specific speed or the distance traveled during acceleration.

Newton's Second Law

Newton's second law states that the net force acting on an object is equal to its mass multiplied by its acceleration (F = ma). This principle is used to determine the force requirements for both the rocket’s thrust and the tension in the supporting wire under acceleration.

Effective Acceleration in Non-Inertial Frames

In an accelerating frame, such as a rocket moving upward, observers experience a combination of gravitational acceleration and the rocket’s acceleration. This effective acceleration alters the apparent weight of objects, leading to changes in the tensions experienced in supporting structures like wires.

Rocket Thrust and Force Requirements

Rocket thrust must not only counteract the force of gravity but also provide the desired net acceleration. The relation between thrust, mass, gravitational acceleration, and net acceleration is fundamental in calculating the total force output required from the rocket engines.

Transcript

00:02 25 ,000 kilogram rocket and it's got the weight of the instruments inside is 15 and let's call that w1 that'll be equal 15 .0 kilograms and our t max tension was 35 .0 newtons let's figure out our vi will be 0 meters per second.

00:34 Our vf will be, i believe, 330 meters per second.

00:45 And this is a constant.

00:51 And g will be 9 .80 meters per second squared.

00:57 Okay, that should be everything we need.

01:00 So first of all, we need to find the acceleration, a.

01:04 A.

01:06 So we need to find the acceleration of the system.

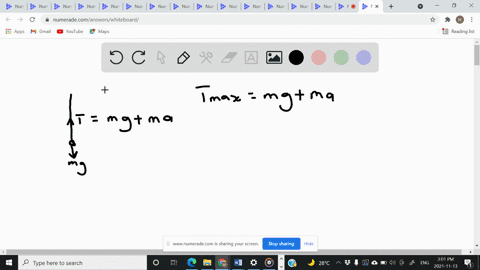

01:08 So we need to draw a force diagram.

01:14 Why am i having trouble with this? so let's do a force diagram.

01:23 So we've got a rocket moving up.

01:34 And here's my w.

01:36 And ay is constant.
