A 5-ft^3 rigid tank contains 5 lbm of water at 20 psia . Determine (a) the temperature, (b) the

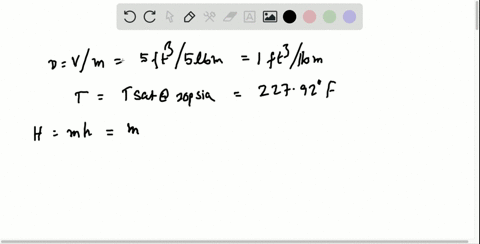

step 1 We have got specific volume equals total volume over mass equals 5 cubic feet divided by mass is

A 5-ft^3 rigid tank contains 5 lbm of water at 20 psia ....

Key Concepts

Quality (x)

Quality is defined as the mass fraction of the vapor in a saturated liquid-vapor mixture. It is a key parameter used to determine the proportions of liquid and vapor present in a two-phase system. Calculating the quality involves comparing the specific volume of the mixture with the specific volumes of the saturated liquid and vapor, which then aids in further property calculations such as enthalpy or internal energy.

Specific Volume

Specific volume is defined as the volume occupied per unit mass of a substance. In thermodynamics, it is a critical parameter used to determine the state of a substance by comparing it with the saturated liquid and saturated vapor specific volumes at a given pressure. This comparison helps to identify whether a substance is in the compressed, saturated, or superheated region.

Rigid Tank (Constant Volume Process)

A rigid tank represents a constant volume system where the volume of the container does not change during the process. In such systems, energy exchanges take place through heat transfer but no work is done by expansion or compression. This characteristic significantly influences the thermodynamic analysis and the evolution of the system’s properties during heating or cooling.

Two-phase Mixture and Phase Equilibrium

When a substance exists as a combination of saturated liquid and saturated vapor, the system is referred to as a two-phase mixture. Phase equilibrium implies that both phases coexist at a specific saturation temperature and pressure. The overall thermodynamic state is determined by the quality of the mixture, which is the ratio of the mass of vapor to the total mass.

Steam (Water) Property Tables

Steam property tables provide critical thermodynamic data for water, including saturation temperatures, pressures, specific volumes, enthalpy, and entropy values for both the liquid and vapor phases. These tables are essential tools in thermodynamics for accurately determining the properties of water under different temperatures and pressures, especially in problems involving phase change and energy calculations.
