A 900 -mm strip of steel is bent into a full circle by two couples applied as shown. Determine (

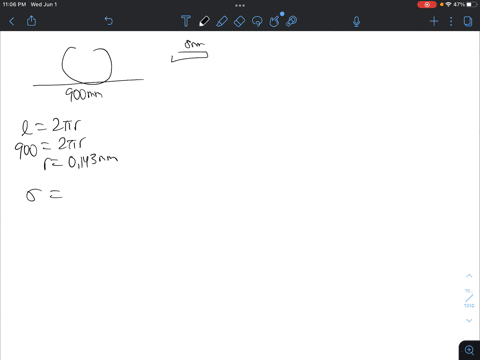

step 1 Solution, step 1, from the given figure. Since the steel strip is bent into a full circle, the t

A 900 -mm strip of steel is bent into a full circle by two...

Key Concepts

Geometric Relationship of a Circle

When a strip is bent into a full circle, its length is directly related to the circle's radius by the formula L = 2?R. By using this relationship, one can determine the radius of curvature from the known length of the strip, which is then used in conjunction with the moment-curvature relationship to analyze the bending process.

Bending Stress in Beams

This concept explains how a bending moment creates a distribution of normal stresses across a beam’s cross-section, where the maximum stress occurs at the furthest distance from the neutral axis. It is quantified by the relation ? = M·c/I, with M representing the bending moment, c the distance from the neutral axis to the outermost fiber, and I the moment of inertia. This relation is essential for ensuring that the stress in the material does not exceed its allowable limit.

Moment of Inertia for Rectangular Sections

For a beam or strip with a rectangular cross-section, the moment of inertia (I) is a measure of its resistance to bending, calculated by I = (b·t³)/12, where b is the width and t is the thickness. This parameter plays a key role in both the bending stress equation and the moment-curvature relationship, impacting how the section performs under bending loads.

Moment-Curvature Relationship

In the context of elastic beam theory, the bending moment is linked to the curvature of the beam through the relationship M = EI/?, where E is the modulus of elasticity, I is the moment of inertia, and ? is the radius of curvature. This relation is used to determine the required bending moment that will achieve a specific curvature, such as that needed to form a complete circle.
