A biology laboratory is maintained at a constant temperature...

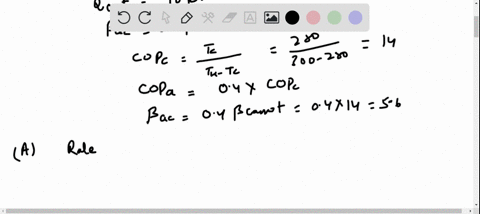

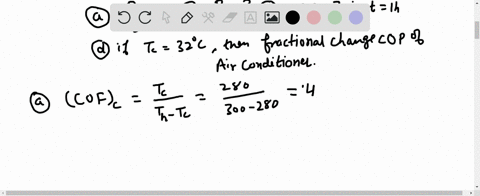

A biology laboratory is maintained at a constant temperature of $7.00^{\circ} \mathrm{C}$ by an air conditioner, which is vented to the air outside. On a typical hot summer day, the outside temperature is $27.0^{\circ} \mathrm{C}$ and the air-conditioning unit emits energy to the outside at a rate of $10.0 \mathrm{kW}$. Model the unit as having a coefficient of performance (COP) equal to $40.0 \%$ of the COP of an ideal Carnot device. (a) At what rate does the air conditioner remove energy from the laboratory? (b) Calculate the power required for the work input. (c) Find the change in entropy of the Universe produced by the air conditioner in 1.00 h. (d) What If? The outside temperature increases to $32.0^{\circ} \mathrm{C}$. Find the fractional change in the COP of the air conditioner.

A biology laboratory is maintained at a constant temperature of $7.00^{\circ} \mathrm{C}$ by an air conditioner, which is vented to the air outside. On a typical hot summer day, the outside temperature is $27.0^{\circ} \mathrm{C}$ and the air-conditioning unit emits energy to the outside at a rate of $10.0 \mathrm{kW}$. Model the unit as having a coefficient of performance (COP) equal to $40.0 \%$ of the COP of an ideal Carnot device. (a) At what rate does the air conditioner remove energy from the laboratory? (b) Calculate the power required for the work input.
(c) Find the change in entropy of the Universe produced by the air conditioner in 1.00 h. (d) What If? The outside temperature increases to $32.0^{\circ} \mathrm{C}$. Find the fractional change in the COP of the air conditioner.

Key Concepts

Energy Balance and Work Input

The principle of energy conservation dictates that the energy removed and rejected by a system must be accounted for by the work input and heat flows involved. In practical applications like refrigeration, establishing an energy balance helps determine how much work is required to transfer a given amount of heat, thereby linking the system's COP to its overall energy efficiency and operational cost.

Entropy and the Second Law of Thermodynamics

Entropy is a measure of the disorder or randomness of a system and is central to the second law of thermodynamics, which states that the total entropy of an isolated system can never decrease over time. In the context of refrigeration, analyzing the change in entropy helps quantify the irreversibility of the process and the amount of entropy generated as heat is transferred between reservoirs at different temperatures.

Carnot Cycle in Refrigeration

The Carnot cycle represents an idealized reversible process that defines the maximum theoretical efficiency for any thermal machine, including refrigerators or heat pumps. In the context of a refrigeration system, the Carnot refrigerator sets the upper limit for the coefficient of performance (COP), which is a measure of how effectively the device moves heat from a cold reservoir to a hot reservoir. This concept is fundamental when comparing real-world systems to their idealized efficiencies.

Coefficient of Performance (COP)

The coefficient of performance is a performance metric commonly used for refrigeration and heat pump systems. It is defined as the ratio of heat removed from the refrigerated space (or heat delivered to the heated space) to the work input required to achieve this transfer. Understanding COP is crucial as it relates directly to the energy efficiency of the system, and differences between the ideal and actual COP indicate the impact of real-world irreversibilities.

Heat Transfer in Thermodynamic Systems

In thermodynamics, heat transfer is the process by which thermal energy is exchanged between physical systems due to a temperature difference. This fundamental concept underpins the operation of refrigerators and air conditioners, where the removal of energy from a cool space and its rejection to a warmer environment rely on controlled heat flows and an energy balance established by the first law of thermodynamics.
