A block with mass m1 is placed on an inclined plane with slope angle αand is connected to a hang

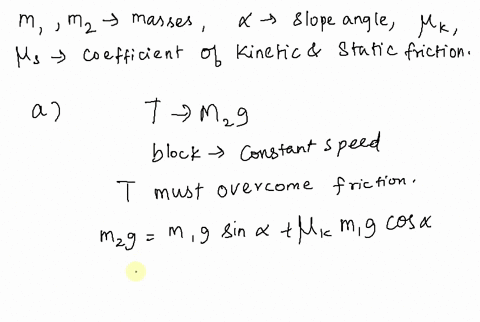

step 1 This question cover the concept of Newton's second law. Let's show the free bird diagram for eac

A block with mass m1 is placed on an inclined plane with...

A block with mass $m_{1}$ is placed on an inclined plane with slope angle $\alpha$ and is connected to a hanging block with mass $m_{2}$ by a cord passing over a small, friction less pulley (Fig. P5.74). The coefficient of static friction is $\mu_{\mathrm{s}}$, and the coefficient of kinetic friction is $\mu_{\mathrm{k}}$. (a) Find the value of $m_{2}$ for which the block of mass $m_{1}$ moves up the plane at constant speed once it is set in motion. (b) Find the value of $m_{2}$ for which the block of mass $m_{1}$ moves down the plane at constant speed once it is set in motion. (c) For what range of values of $m_{2}$ will the blocks remain at rest if they are released from rest?

Key Concepts

Newton's Second Law

Newton's Second Law states that the net force acting on an object is equal to the product of its mass and acceleration. In problems involving bodies on inclined planes and connected by cords, this principle is used to set up the equations of motion, ensuring that when objects move at constant speed (zero acceleration), the sum of forces in each direction cancels out.

Free-Body Diagram Analysis

A free-body diagram is a graphical illustration used to visualize the forces acting on an object. In the context of an inclined plane and pulley system, drawing the diagram helps in clearly identifying components such as gravitational force, normal force, frictional force, and tension in the cord, which is crucial for setting up the equilibrium equations.

Force Decomposition on an Inclined Plane

When dealing with inclined planes, gravitational force is typically resolved into two components: one parallel to the surface and one perpendicular to it. This decomposition is important as the parallel component affects motion along the plane while the perpendicular component determines the normal force, which is directly related to the frictional force.

Friction: Static vs Kinetic

Frictional forces resist the relative motion between surfaces in contact. Static friction acts when the objects are at rest and provides a maximum threshold before motion commences, while kinetic friction comes into play when there is motion, and its magnitude is usually constant. Understanding the distinction between these two is essential for determining the conditions required to either initiate motion or maintain constant velocity.

Equilibrium Conditions

Equilibrium conditions occur when the net force acting on a system is zero, resulting in no acceleration. In these scenarios, such as when a block moves at constant speed, the forces (including gravity, friction, and tension) are balanced. This balance is critical for solving for unknown quantities, like the mass required to maintain motion without acceleration.

Pulley System Mechanics

In systems involving pulleys, the mechanical relationship between the connected masses is mediated by the cord and the pulley. The tension in the cord transmits forces between the masses, and when the pulley is frictionless and massless, it simplifies the analysis by ensuring that the same tension acts throughout the cord. This concept is crucial in analyzing the dynamic interaction between the block on the inclined plane and the hanging block.
