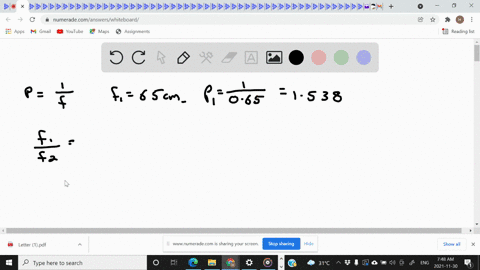

step 1 If I have a lens of F1 and if I want to combine it with another length of focal length F2, then

A camera can normally focus as close as 65 cm, but it has...

A camera can normally focus as close as $65 \mathrm{~cm}$, but it has provisions for mounting additional lenses just in front of the main lens to provide close-up capability. What type and power of auxiliary lens will allow the camera to focus as close as $22 \mathrm{~cm}$ ?

Key Concepts

Thin Lens Formula

The thin lens formula (1/f = 1/do + 1/di) relates object distance, image distance, and focal length, and is fundamental in understanding how lenses form images. It is especially important when combining lenses, such as when adding an auxiliary lens to a camera system, to calculate how the added lens affects the imaging process.

Virtual Image Formation and Sign Conventions

In optics, a virtual image is formed when the outgoing light rays from a lens diverge, making the image appear on the same side as the object. Using proper sign conventions with the thin lens formula is essential to determine whether an image is real or virtual, which in turn impacts how additional lenses (like close-up lenses) are designed and used in a system.

Diopter Power and Focal Length Relationship

Diopter power is defined as the reciprocal of the focal length (in meters) of a lens. This concept is commonly used for close-up and corrective lenses, because it provides an intuitive measure of how strongly a lens converges or diverges light. In macro photography, selecting the appropriate diopter (and thus focal length) for an auxiliary lens directly determines the reduction in minimum focusing distance.

Macro Photography and Close-Up Lens Techniques

Macro photography often requires capturing subjects at distances closer than the normal minimum focusing distance. Close-up (or auxiliary) lenses are mounted in front of the camera lens to achieve this by altering the effective imaging distance. They work in conjunction with the camera lens to form an image at a position where the camera can focus, thereby facilitating detailed close-up work.
